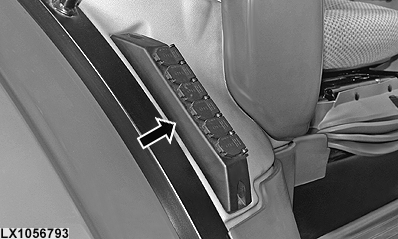

Multiple Power-Outlet Socket Strip (If Equipped)

LX1056793-UN-25FEB13

A strip of extra sockets can be installed between the door and the switch console. Terminal 15/30 of the 3-terminal power outlet socket strip provides a max. permanent direct current of 25 amps. Terminal 82 provides a max. permanent direct current of 5 amps. Terminal 31 is ground.
Turn key in key switch to the right to supply power to terminal 82. Terminal 15/30 is supplied with power even when the ignition is switched off.

IMPORTANT: When operating electrical consumers with high current draw and using multi-outlet power strips, the maximum permitted current load of the supply circuit must not be exceeded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.
