Parking Tractor

LX1056810-UN-28FEB13

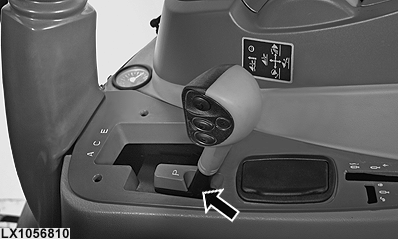

Range-Shift Lever for PowrQuad™ / AutoQuad™ Shown

Engage park lock and apply park brake when parked or operating the tractor from a stationary position.

IMPORTANT: Engage park lock only when the tractor is stationary.

IMPORTANT: On tractors with air brakes, engaging the park brake activates the trailer brake.

NOTE: When engaging park lock on slopes, remember to actuate the brake pedals as well.
