Change Cab Air Filters and Recirculation Air Filters


Change cab air filters

LX1041716
LX1041716-UN-10OCT06

LX1041717
LX1041717-UN-10OCT06

LX1041720
LX1041720-UN-10OCT06

LX1041719
LX1041719-UN-10OCT06

A - Wing Screws

B - Wing Screws

C - Gasket

On both sides, remove cab air filters and replace them.

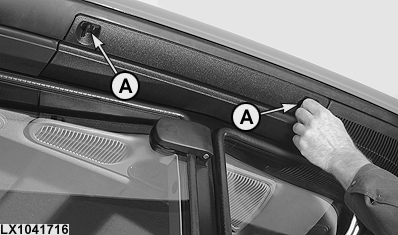

Remove wing screws (A) and the cover.

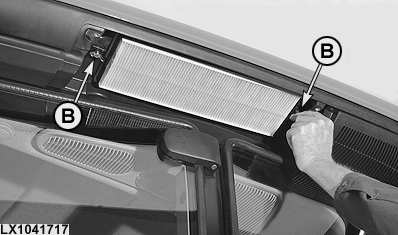

Remove wing screws (B) and remove the installation frame and filter element.

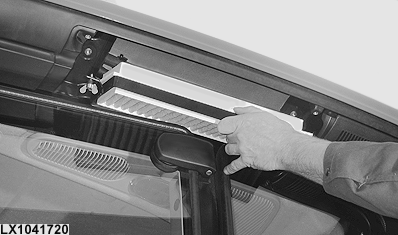

Install a new filter element in the installation frame. Make sure that filter element gasket (C) is facing away from the installation frame.

Clean the opening in the roof and check the sealing surfaces.

Install in reverse order.

NOTE: The service interval is every 250 hours or every year at the latest, if the cab was retrofitted with activated carbon filters.


Change Recirculation Air Filter (Inside Roof)

LX1041722
LX1041722-UN-10OCT06

LX1041723
LX1041723-UN-10OCT06

LX1041724
LX1041724-UN-10OCT06

A - Left Cover

B - Right Cover

C - Compartment

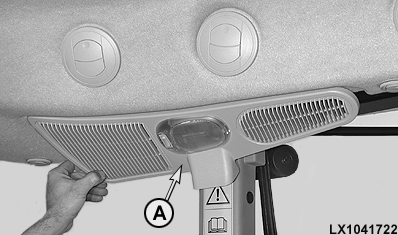

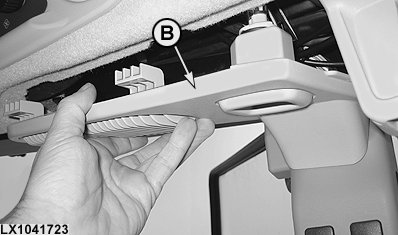

Remove left cover (A). Remove right cover (B) and radio compartment (C).

LX1041725
LX1041725-UN-10OCT06

LX1056889
LX1056889-UN-27MAY13

D - Wing Screw

E - Retaining Frame

F - Filter Element

G - Lugs (2 used)

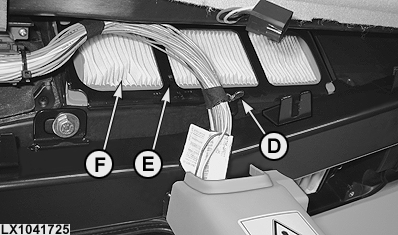

Take out wing screw (D), and lift out retaining frame (E) and filter element (F).

Clean the opening in the roof and check the sealing surfaces. Install filter element (F) in the roof and align it so that the gasket makes proper contact with the sealing surfaces.

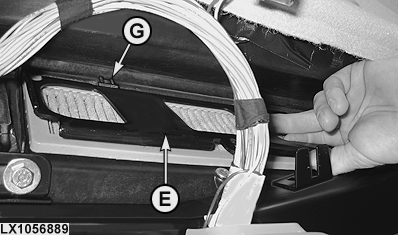

Slide retaining frame (E) under the two lugs (G), and secure with a wing screw.

Install the covers and the radio compartment.

NOTE: The service interval is every 250 hours or every year at the latest, if the cab was retrofitted with activated carbon filters.
