Comfort Seat MSG85

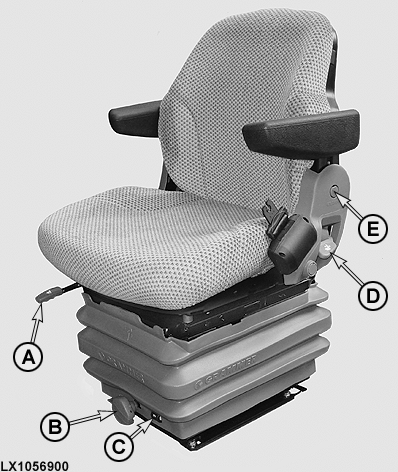

LX1056900-UN-13MAR13

A - Fore/Aft Adjustment

B - Crank for Adjusting Operator' Weight

C - Weight Indicator

D - Backrest Tilt

E - Adjust Height of Armrest

IMPORTANT: When adjusting the seat, there is a danger of crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

Adjust seat height

To adjust the seat upward, raise it until it clicks into place (3 detent positions). To adjust downward, raise the seat to the stop position then lower it to the lowest position.

A — Fore/aft adjustment

Pull lever (A) and move the seat to the desired position. Let the lever click into place.

B — Weight adjustment

There must be weight on the seat for it to be adjusted to suit the weight of the operator. To adjust the seat to the operator's weight, allow the seat to settle, then adjust weight as desired by means of crank (B).

Use indicator (C) to check.

NOTE: The seat can be adjusted for weights between 50 and 130 kg (110 and 285 lb.).

D — Adjust tilt of backrest

Pull lever (D) and move the seat backrest to the desired angle. Let the lever click into place.

E — Adjust height of armrests

On both sides, remove cover (E), loosen the hex. nut and adjust the armrest to the desired position. Tighten the hex. nut and re-install cover (E).
