Air Comfort Seat MSG95GL

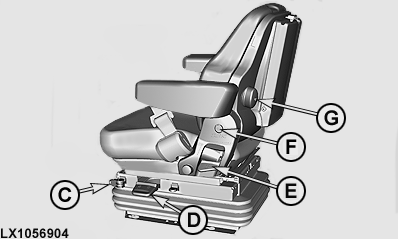

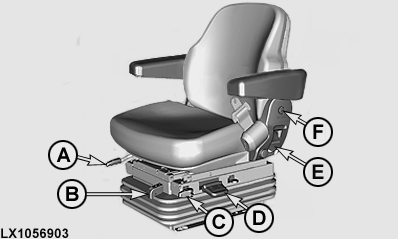

LX1056903-UN-13MAR13

LX1056904-UN-13MAR13

IMPORTANT: When adjusting the seat, there is a danger of crushing. Objects placed in the cab may limit free space. Make sure that there is sufficient distance to adjacent components to prevent collisions. Accidental contact with the controls could cause the tractor or implement to operate.

A — Fore/aft adjustment

Pull lever (A) and move the seat to the desired position. Let the lever click into place.

B — Weight and height indicator

The green mark on the scale indicates whether the weight or height setting is correct.

C — Adjust fore/aft suspension

• Lever (C) to the front - no fore/aft suspension
• Lever (C) to the rear - fore/aft suspension

D — Weight adjustment

There must be weight on the seat for it to be adjusted to suit the weight of the operator. To adjust the seat to the operator's weight, start the engine, allow the seat to settle, then pull lever (D) up or push it down until the green mark appears on the indicator scale (B).

NOTE: The seat can be adjusted for weights between 50 and 130 kg (110 and 285 lb.).

D — Height adjustment

After the weight adjustment has been made, the seat can be adjusted to any height. To adjust the height, pull lever (D) up as far as it will go or push it down as far as it will go. The green mark must appear on the indicator scale (B). If the top or bottom limit is reached during height adjustment, set the height slightly lower or higher to ensure a minimum amount of travel up and down (suspension).

E — Adjust tilt of backrest

Pull lever (E) and move the seat backrest to the desired angle. Let the lever click into place.

F — Adjust height of armrests

On both sides, remove cover (F), loosen the hex. nut and adjust the armrest to the desired position. Tighten the hex. nut and re-install cover (F).

G — Adjust lumbar support on backrest

Use knob (G) to adjust the position of the lumbar support.
