Rear Wheel Tread Adjustment with Rims for 8 Positions - Flanged Axle

LX1053404-UN-12MAR12

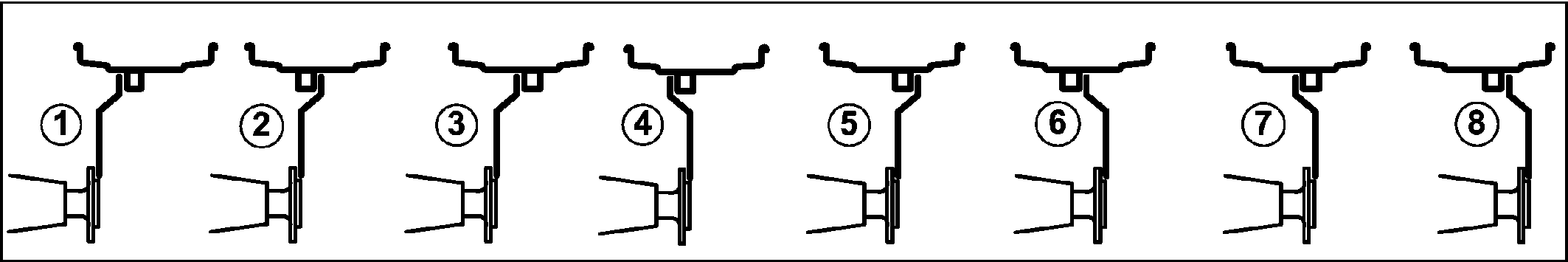

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel dish
Tires:		1	2	3	4	5	6	7	8
520/70R34	1714 mm	1918 mm	1812 mm	1714 mm	--**	--**	--**	--**	--**
	(67.48 lb.)	(75.51 lb.)	(71.34 lb.)	(67.48 lb.)
520/70R38	1682 mm	1846 mm	1790 mm	1738 mm	1682 mm	--**	--**	--**	--**
	(66.22 lb.)	(72.68 lb.)	(70.47 lb.)	(68.42 lb.)	(66.22 lb.)
540/65R34	1714 mm	1918 mm	1812 mm	1714 mm	--**	--**	--**	--**	--**
	(67.48 lb.)	(75.51 lb.)	(71.34 lb.)	(67.48 lb.)
540/65R38	1682 mm	1846 mm	1790 mm	1738 mm	1682 mm	--**	--**	--**	--**
	(66.22 lb.)	(72.68 lb.)	(70.47 lb.)	(68.42 lb.)	(66.22 lb.)
600/65R38	1682 mm	1846 mm	1790 mm	1738 mm	--**	--**	--**	--**	--**
	(66.22 lb.)	(72.68 lb.)	(70.47 lb.)	(68.42 lb.)
* N O T on public roads. Comply with local traffic regulations.
** Installation in this position is not allowed

IMPORTANT: Comply with instructions for rear wheel tread adjustment with rims for 8 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
