Rear Wheel Tread Adjustment with Rims for 16 Positions - Flanged Axle

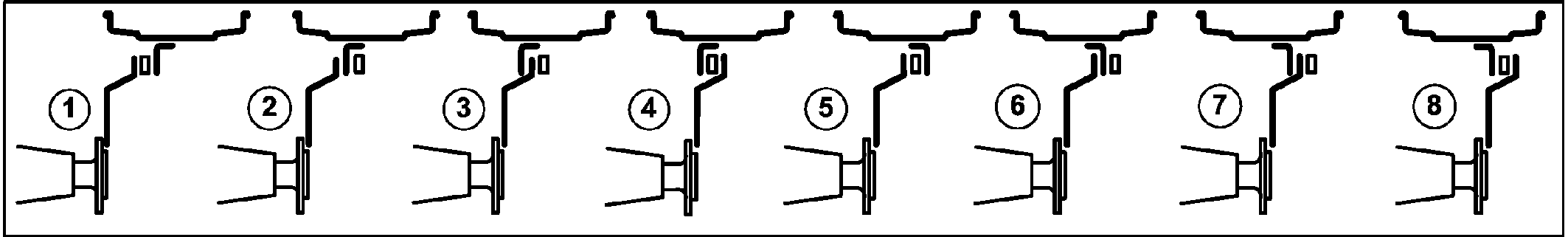

LX1053414-UN-16MAR12

Rear Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel dish
Tires:		1	2	3	4	5	6	7	8
13.6R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
16.9R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm
	(67.32 lb.)	(75.20 lb.)	(74.02 lb.)	(72.68 lb.)	(71.50 lb.)	(67.17 lb.)	(65.98 lb.)	(64.65 lb.)	(63.46 lb.)
16.9R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm
	(71.34 lb.)	(75.28 lb.)	(74.09 lb.)	(72.68 lb.)	(71.50 lb.)	(67.24 lb.)	(66.06 lb.)	(64.65 lb.)	(63.46 lb.)
16.9R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
18.4R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm
	(67.32 lb.)	(75.20 lb.)	(74.02 lb.)	(72.68 lb.)	(71.50 lb.)	(67.17 lb.)	(65.98 lb.)	(64.65 lb.)	(63.46 lb.)
18.4R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm
	(71.34 lb.)	(75.28 lb.)	(74.09 lb.)	(72.68 lb.)	(71.50 lb.)	(67.24 lb.)	(66.06 lb.)	(64.65 lb.)	(63.46 lb.)
18.4R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
340/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
380/80R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
420/85R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm
	(67.32 lb.)	(75.20 lb.)	(74.02 lb.)	(72.68 lb.)	(71.50 lb.)	(67.17 lb.)	(65.98 lb.)	(64.65 lb.)	(63.46 lb.)
420/85R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm
	(71.34 lb.)	(75.28 lb.)	(74.09 lb.)	(72.68 lb.)	(71.50 lb.)	(67.24 lb.)	(66.06 lb.)	(64.65 lb.)	(63.46 lb.)
420/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
460/85R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm
	(67.32 lb.)	(75.20 lb.)	(74.02 lb.)	(72.68 lb.)	(71.50 lb.)	(67.17 lb.)	(65.98 lb.)	(64.65 lb.)	(63.46 lb.)
460/85R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm
	(71.34 lb.)	(75.28 lb.)	(74.09 lb.)	(72.68 lb.)	(71.50 lb.)	(67.24 lb.)	(66.06 lb.)	(64.65 lb.)	(63.46 lb.)
460/85R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
480/70R30	1710 mm	1910 mm	1880 mm	1846 mm	1816 mm	1706 mm	1676 mm	1642 mm	1612 mm
	(67.32 lb.)	(75.20 lb.)	(74.02 lb.)	(72.68 lb.)	(71.50 lb.)	(67.17 lb.)	(65.98 lb.)	(64.65 lb.)	(63.46 lb.)
480/70R34	1812 mm	1912 mm	1882 mm	1846 mm	1816 mm	1708 mm	1678 mm	1642 mm	1612 mm
	(71.34 lb.)	(75.28 lb.)	(74.09 lb.)	(72.68 lb.)	(71.50 lb.)	(67.24 lb.)	(66.06 lb.)	(64.65 lb.)	(63.46 lb.)
480/70R38	1816 mm	1916 mm	1886 mm	1846 mm	1816 mm	1712 mm	1682 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.43 lb.)	(74.25 lb.)	(72.68 lb.)	(71.50 lb.)	(67.40 lb.)	(66.22 lb.)	(64.65 lb.)	(63.46 lb.)
270/95R48	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.51 lb.)	(74.33 lb.)	(72.68 lb.)	(71.50 lb.)	(67.48 lb.)	(66.30 lb.)	(64.65 lb.)	(63.46 lb.)
300/95R46	1816 mm	1918 mm	1888 mm	1846 mm	1816 mm	1714 mm	1684 mm	1642 mm	1612 mm
	(71.50 lb.)	(75.51 lb.)	(74.33 lb.)	(72.68 lb.)	(71.50 lb.)	(67.48 lb.)	(66.30 lb.)	(64.65 lb.)	(63.46 lb.)
* N O T on public roads. Comply with local traffic regulations. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions for rear wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

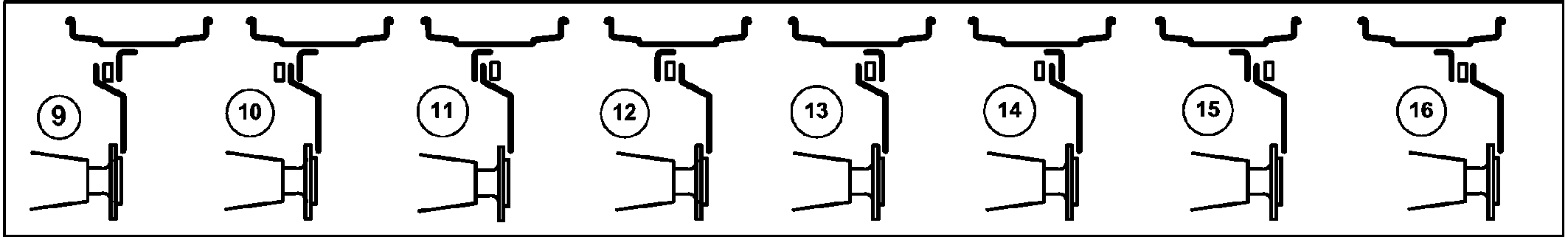

LX1053415-UN-16MAR12

Rear Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel dish
Tires:		9	10	11	12	13	14	15	16
13.6R38	1816 mm	1516 mm	1486 mm	--**	--**	--**	--**	--**	--**
	(71.50 lb.)	(59.68 lb.)	(58.50 lb.)
16.9R30	1710 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(67.32 lb.)
16.9R34	1812 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.34 lb.)
16.9R38	1816 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.50 lb.)
18.4R30	1710 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(67.32 lb.)
18.4R34	1812 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.34 lb.)
18.4R38	1816 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.50 lb.)
340/85R38	1816 mm	1516 mm	1486 mm	1446 mm	--**	--**	--**	--**	--**
	(71.50 lb.)	(59.68 lb.)	(58.50 lb.)	(56.93 lb.)
380/80R38	1816 mm	1516 mm	1486 mm	--**	--**	--**	--**	--**	--**
	(71.50 lb.)	(59.68 lb.)	(58.50 lb.)
420/85R30	1710 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(67.32 lb.)
420/85R34	1812 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.34 lb.)
420/85R38	1816 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.50 lb.)
460/85R30	1710 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(67.32 lb.)
460/85R34	1812 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.34 lb.)
460/85R38	1816 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.50 lb.)
480/70R30	1710 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(67.32 lb.)
480/70R34	1812 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.34 lb.)
480/70R38	1816 mm	--**	--**	--**	--**	--**	--**	--**	--**
	(71.50 lb.)
270/95R48	1816 mm	1518 mm	1488 mm	1446 mm	1416 mm	--**	--**	--**	--**
	(71.50 lb.)	(59.76 lb.)	(58.58 lb.)	(56.93 lb.)	(55.75 lb.)
300/95R46	1816 mm	1518 mm	1488 mm	1446 mm	1416 mm	--**	--**	--**	--**
	(71.50 lb.)	(59.76 lb.)	(58.58 lb.)	(56.93 lb.)	(55.75 lb.)
* N O T on public roads. Comply with local traffic regulations. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions for rear wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
