Front-Wheel Drive Axle - Final Drives without Brake, Oil Change

LX1057459-UN-21AUG14

LX1057460-UN-21AUG14

CAUTION: The oil may be under pressure when it is hot. Remove the drain screw slowly.

NOTE: Replace oil in the final drives after the first 100 and after the first 1500 hours of operation. Then change after every 1500 hours of operation or once every 2 years, whichever occurs first.

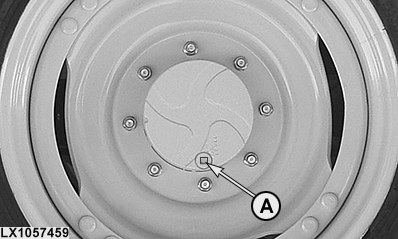

1. Turn wheel so that drain screw (A) is at the bottom. Remove screw, and drain the oil.

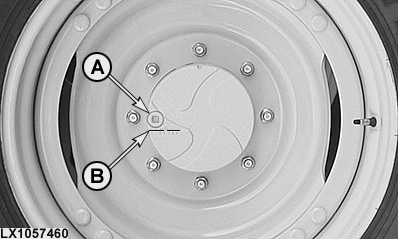

2. Turn the wheel through 90° so that the line marked OIL LEVEL (B) is horizontal, and fill with fresh oil at drain screw bore. Oil must be level with drain screw bore.

3. Put a new O-ring on the drain screw.

4. Screw in the drain screw and tighten it to 90 Nm (66 lb.-ft.).

Oil to be used	Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).
Capacity	See “Capacities” of relevant tractor in Section 145 (Specifications).
