Lighting System - Light Switch (Tractors with Cab)

LX1056630-UN-26JUN12

LX1056631-UN-05SEP12

L102655-UN-15AUG94

Light switch (A) can be set to the following positions:

• 1 = Lights switched off
• 2 = Parking lights switched on (clearance and tail lights)
• 3 = Headlights switched on
• 4 = Headlights switched on and worklights can be switched on

Switch headlights to low beam or high beam position using switch (B).

• Switch down = high beam
• Switch in center position = low beam
• Switch up = headlight flasher

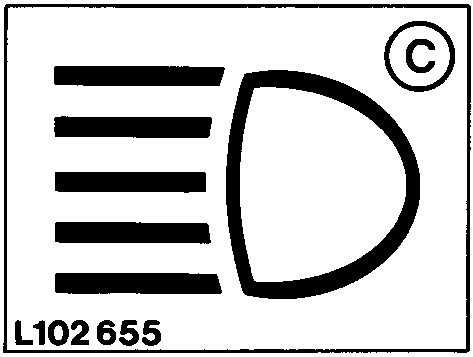

Indicator light (C) will glow when headlight switch is in high beam position.
