Bleed Air from Fuel System - 4-Cylinder Engines

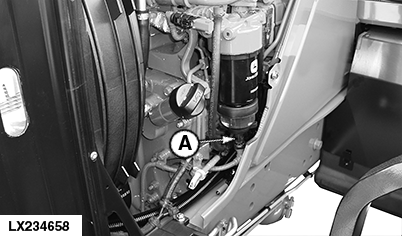

LX234658-UN-16APR15

CAUTION: High-pressure fluid remaining in the fuel lines can cause serious injury. Do not disconnect or attempt to repair fuel lines, sensors or any other components between injection pump and nozzles.

The fuel system must be bled whenever the fuel tank has been run dry or fuel filter (A) has been replaced.

Turn key in ignition switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds.
