Mechanical Selective Control Valves (SCV) - Controls

LX234796-UN-10DEC15

LX234797-UN-10DEC15

A - Lever for Locking the Control Levers

B - Control Lever for Selective Control Valve, SCV I

C - Control Lever for Selective Control Valve, SCV II

D - Control Lever for Selective Control Valve, SCV III

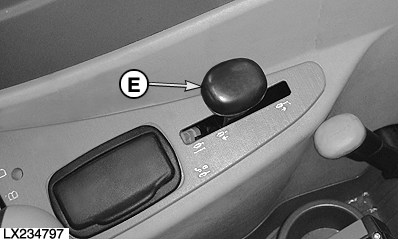

E - Control Lever for SCV IV, If Equipped

IMPORTANT: The multi-function lever and the SCVs must be locked when driving on public roads.

For more information, see Section "Additional Equipment - Hydraulic System".
