Front Hitch (Economy) - Controls

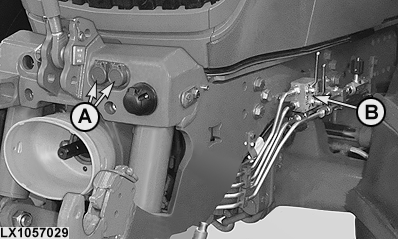

LX1057029-UN-08JUL13

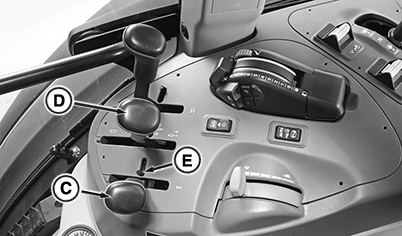

LX234798-UN-10DEC15

A - Couplers - Selective Control Valve II

B - Front Hitch - Shut-Off Valve

C - Front Hitch (Raise/Lower) - Control Through SCV I

D - Front Hitch Couplers - Control Through SCV II

E - Transport Lock

See "Hitch" section for more information.

IMPORTANT: Use transport lock (E) to lock the control levers when driving on roads and whenever the control levers are in neutral and not required.
