Rear Hitch - Controls

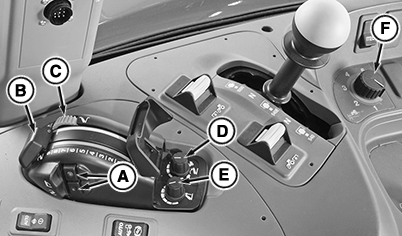

LX234799-UN-10DEC15

LX234793-UN-10DEC15

A - Control Switch, Hitch (Raise/Lower)

B - Control Knob, Adjusting Depth Control (Raise/Lower)

C - Control Knob, Adjusting Operating Depth

D - Control Knob, Adjusting Rate of Drop

E - Control Knob, Adjusting Raise Height Limit

F - Control Knob, Adjusting Draft/Depth Control

G - Remote Control, Hitch (Raise/Lower)

See "Hitch" section for more information.

CAUTION: Always engage the hitch lock / hitch dampening function before driving the tractor!

To do so, move control (B) beyond 0 until it stops in the transport setting (lock symbol). The hitch is now locked.
