CommandQuad™ PLUS — Set the AutoClutch

LX266679-UN-16DEC15

LX1056690-UN-04JUL12

A - Set the AutoClutch Function

1 - Confirm Button

2 - Up Arrow Button

3 - Down Arrow Button

4 - Menu Button

CAUTION: When AutoClutch is switched off, the clutch pedal needs to be pressed to stop the tractor.

IMPORTANT: The AutoClutch function operates only when the brake pedals are coupled together. Actuating a pedal individually (e.g. to steer) does NOT actuate the automatic clutch function.

IMPORTANT: AutoClutch remains switched on after start-up. If AutoClutch is switched off by the operator, it switches on again automatically the next time the tractor is started.

AutoClutch is an automatic clutch function. When AutoClutch is switched on, the clutch pedal does not need to be pressed to stop the tractor.

If both brake pedals are depressed when driving the tractor, the speed will be reduced or the tractor stops. When the brake pedals are released again, the tractor automatically accelerates up to the speed currently commanded by the hand throttle or accelerator pedal.

NOTE: The engine speed must not be below 900 rpm when using the brake pedals for steering (only one brake pedal depressed), otherwise the AutoClutch function will become active again.

The AutoClutch function can be set for various anticipated situations.

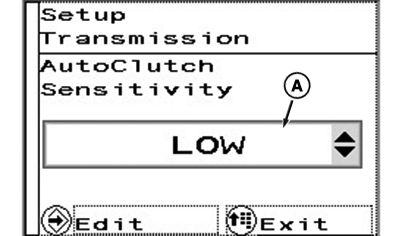

To set the AutoClutch function, press menu button (4) repeatedly until the page shown appears.

With arrow buttons (2) or (3), select the desired check box (A) and press the confirm button (1).

Use the arrow buttons to select the desired setting.

Save selection using the confirm button.

To exit press menu button (4).

Settings for the AutoClutch function
OFF	Automatic Clutch function is off. It can be switched off only if the brake pedals are NOT pressed.
Low:	is recommended for driving downhill with a trailer, particularly if ground conditions are difficult.
Medium:	is primarily for driving with a trailer in moderately hilly terrain.
High	is primarily for driving without a trailer or with a trailer on level ground.
