Lighting System - Overview of the Lights

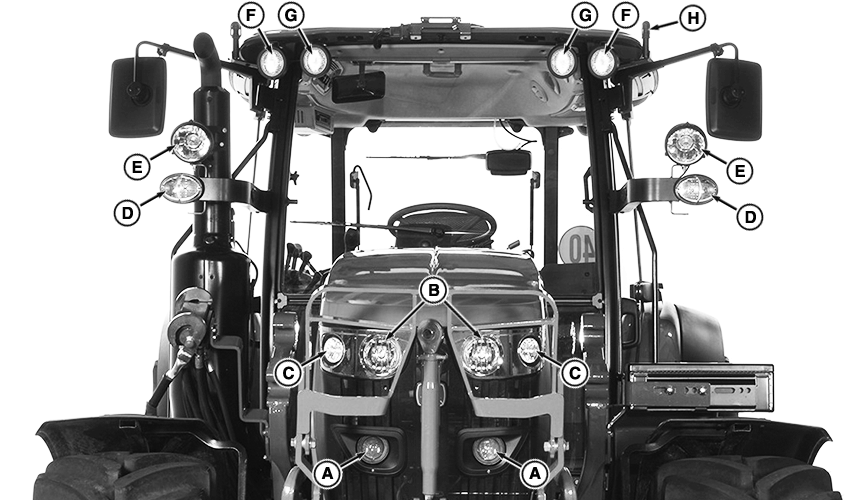

LX266683-UN-13JAN16

A	Headlights, Low Beam (on Both Sides of Engine Hood)	E	Additional Headlights1 (Low Beam and High Beam) or Worklights1 (on Both Sides of Cab Frame)
B	Headlights, High Beam (on Both Sides of Engine Hood)	F	Worklights1 (on Front of Roof, Both Sides, Outside)
C	Worklights1 (on Both Sides of Engine Hood)	G	Worklights1 (on Front of Roof, Both Sides, Inner)
D	Turn-Signal and Clearance Lights (on Both Sides of Cab Frame)	H	Beacon Light1

NOTE: H9 bulbs must NOT be used in front corner worklights (C).

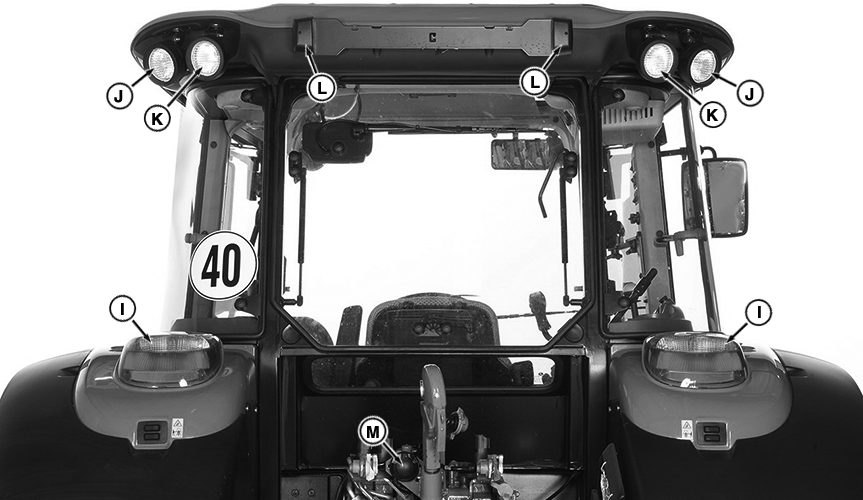

LX266684-UN-13JAN16

I	Tail, Brake, Turn-Signal Light	L	License Plate Light
J	Worklights1 (on Rear Outer Roof, Both Sides)	M	Seven-Pin Trailer Connector for Lights
K	Worklights1 (on Rear Inner Roof, Both Sides)
