Lighting System - Switch for Worklights

LX266688-UN-13JAN16

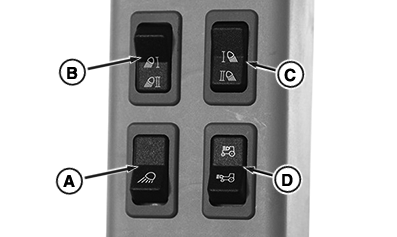

Worklight Switch

LX266691-UN-13JAN16

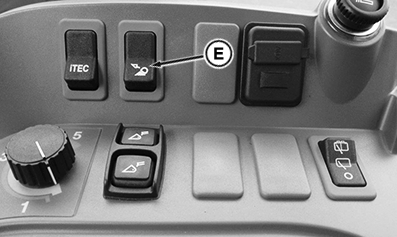

Switch for Front Loader Worklights

A - Front Corner Worklights (If Equipped)

B - Worklights on Front of Cab Roof

C - Worklights on Rear of Cab Roof

D - Worklights on Rear Fender (If Equipped)

E - Worklights on Front Loader (If Equipped)

IMPORTANT: It is not permitted to use worklights on public roads.

The worklights can be switched on and off using the switches shown here once the light switch is set to position 4.
