Wiper and Washer System

LX1053455-UN-01MAR13

Windshield Wiper/Wiper Switch

LX1047083-UN-05AUG08

Rear Window Wiper Switch

LX266692-UN-13JAN16

A - Windshield Wiper Switch

B - Rear Window Wiper Switch

C - Windshield Washer Reservoir

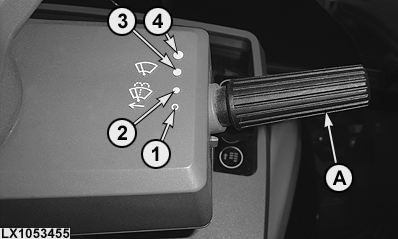

Windshield wiper switch (A) has four positions:

• 1 = Off
• 2 = Intermittent wipe
• 3 = Slow wipe
• 4 = Fast wipe

The window washer system is operated using switch (A) (push towards steering column).

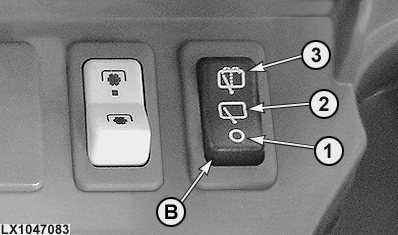

Rear window wiper switch (B) has three positions:

• 1 = Off
• 2 = wiper on
• 3 = washer on

The window washer system is operated using switch (B) (push the switch).

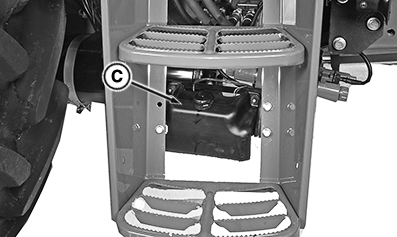

Add a suitable anti-freeze solution to water in reservoir (C) to prevent damage to the system if temperatures drop below freezing point.

IMPORTANT: Never open the rear window fully without first checking that the rear wiper has reached its home position.

Rear window wiper and washer system only operate if the rear window is closed.
