Controls for Hydraulic Quick Release and Worklights on Front Loader (if Equipped)

CAUTION: It is not permitted to use worklights on public roads.

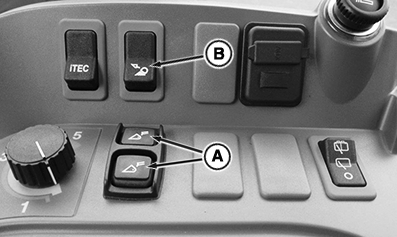

LX266710
LX266710-UN-13JAN16

A - Buttons for Rapid Hydraulic Disengagement

B - Worklight Switch

When changing the attachment of the front loader, press buttons (A) to unlatch or latch.

NOTE: Refer to the operator's manual of the front loader for more information.

The front loader worklights can be switched on and off with switch (B), provided that the light switch is in position 4. Also see “Lighting System - Front Loader Worklights (If Equipped)” in the Lights section.

OULXA64,0003B26-19-20160115
