After the First 4 and 8 Hours of Operation

Tighten bolts of adjustable front axle

LX1056762-UN-19OCT12

A - 400 Nm (295 lb.-ft.)

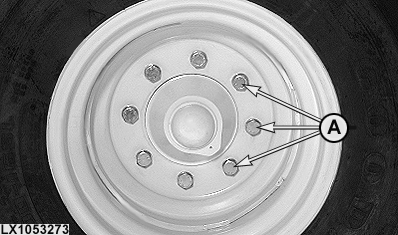

Tighten front wheel bolts, on front axles without front-wheel drive

LX1053273-UN-14SEP11

A - 250 Nm (185 lb.-ft.)

Tighten front wheel bolts and wheel nuts

LX1053440-UN-21MAR12

Front Wheel with Square Wheel Dish

LX1056770-UN-12NOV12

Front Wheel with Waffle Rim

A - 300 Nm (220 lb.-ft.)

B - 210 Nm (155 lb.-ft.)

C - 300 N·m (220 lb.-ft.)

D - 310 N·m (230 lb.-ft.)

Tighten rear wheel bolts and wheel nuts with flanged axles

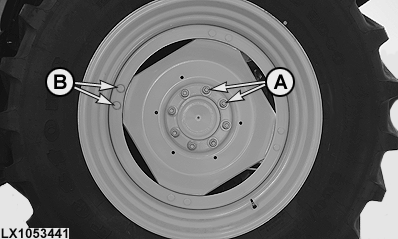

LX1053441-UN-21MAR12

Rear Wheel with Square Wheel Dish

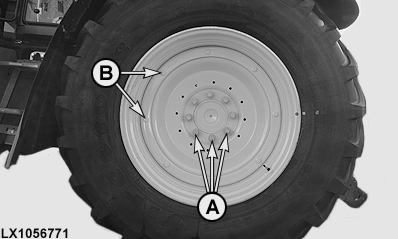

LX1056771-UN-12NOV12

Rear Wheel with Round Wheel Dish

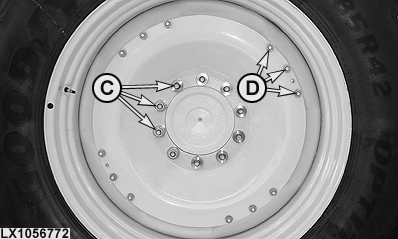

LX1056772-UN-12NOV12

Rear Wheel with Waffle Rim

A - 500 N·m (370 lb.-ft.)

B - 210 N·m (155 lb.-ft.)

C - 500 N·m (370 lb.-ft.)

D - 310 N·m (230 lb.-ft.)

Tighten screws of wheel weights

LX1056803-UN-12MAR13

• A - M16 Cap Screws, 310 N·m (230 lb.-ft.)
• A - M20 Cap Screws, 610 N·m (450 lb.-ft.)
