Coolant Heater

LX266704
LX266704-UN-13JAN16

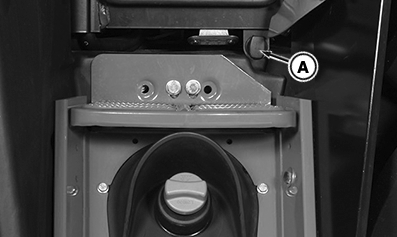

Connect connector (A) of coolant heater to a 230-volt or 110-volt power source.

NOTE: If equipped, the transmission oil preheater and charge pump preheater are also operated by means of connector (A).

At an ambient temperature of -15 °C (5 °F), the heating process takes approx. 2 hours. Extend the heating period if ambient temperature is lower.

IMPORTANT: Pay attention to regional differences in the power grid.

OULXA64,0003B2F-19-20160115
