Reduce Fuel Consumption

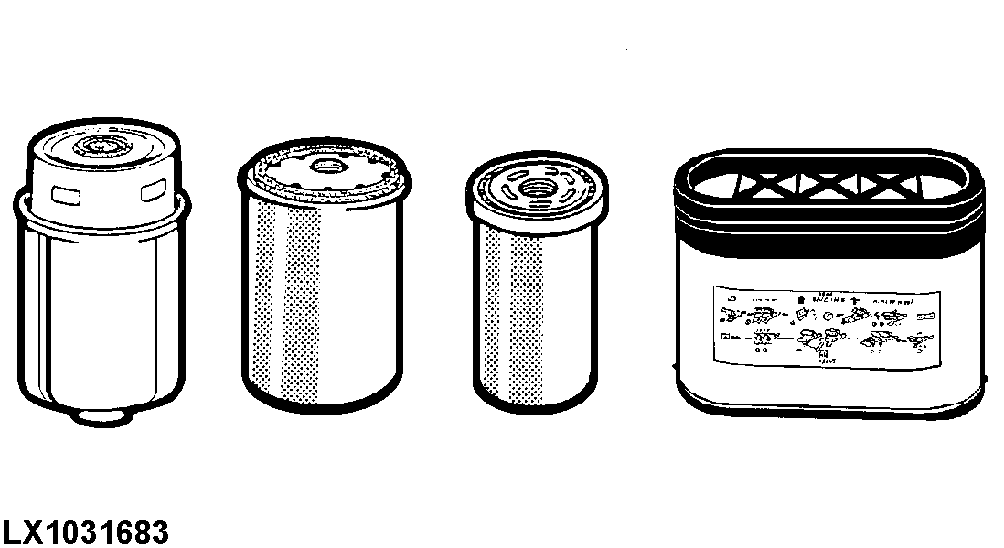

Proper maintenance

LX1031683
LX1031683-UN-27MAR03

Replace Air Filter Insert, Fuel, Engine Oil and Transmission/Hydraulic Oil Filters on time (refer to Maintenance Section).

Use only John Deere filters.

L103642
L103642-UN-15AUG94

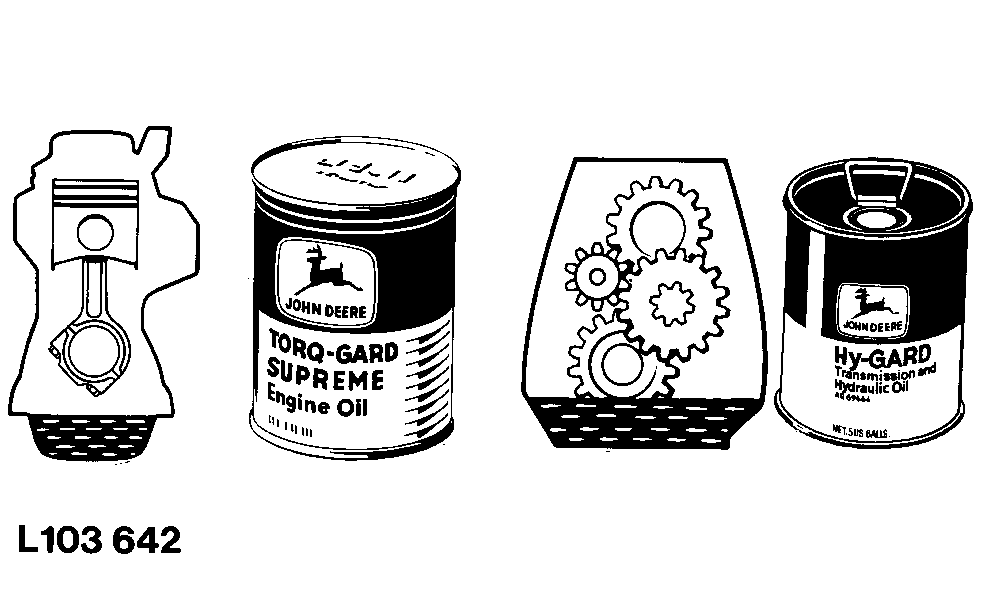

Use recommended oils and lubricants only (see Fuel, Lubricants, Hydraulic Oil and Coolant section).

LX1053413
LX1053413-UN-19MAR12

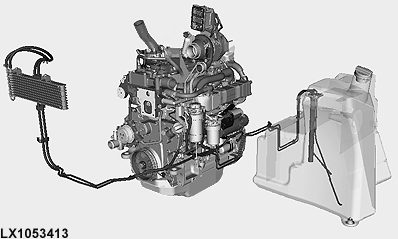

Have the fuel system checked regularly by your John Deere dealer.

LX1049977
LX1049977-UN-18MAY11

Have draft link control functions of the hitch checked regularly by your John Deere dealer.

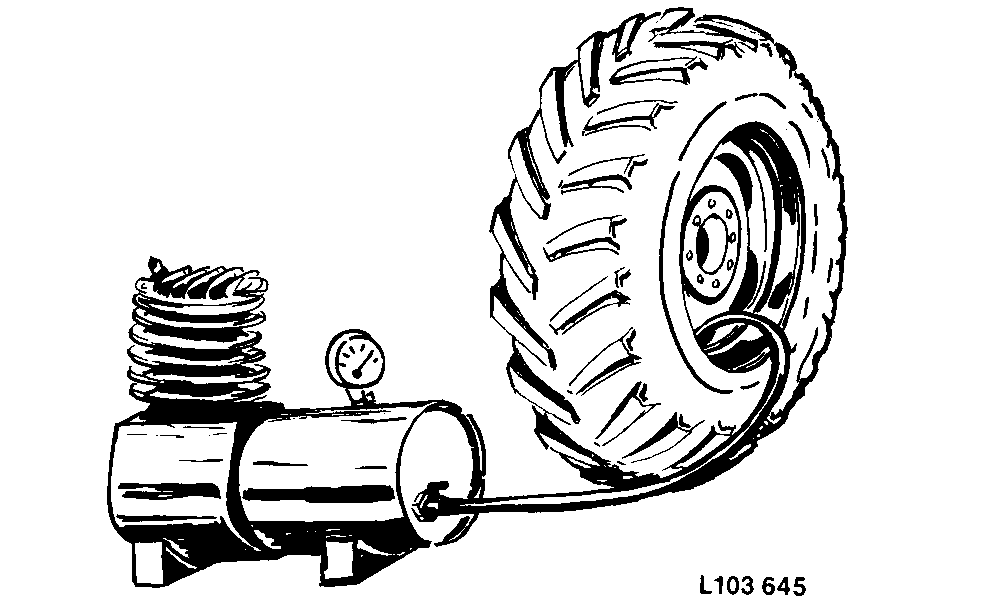

Drive with the correct tire pressure

L103645
L103645-UN-15AUG94

Adjust tire pressure to the workload (refer to John Deere dealers or tire manufacturer).

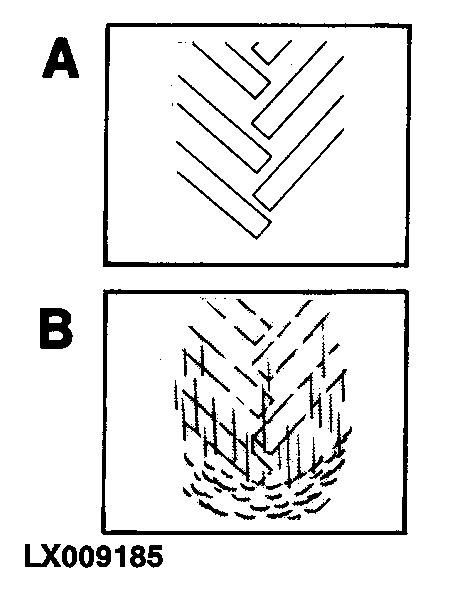

Choose correct ballast

LX009185
LX009185-UN-01SEP94

LX009186
LX009186-UN-01SEP94

A - Too Much Ballast

B - Too Little Ballast

C - Correct Ballast

Select ballast sot that there is 10-15 % slippage. Reduce ballast is the workload is light.

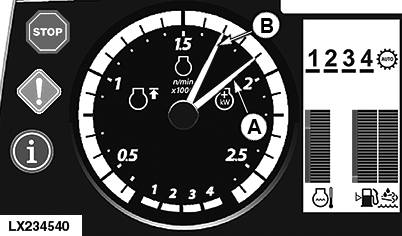

Select correct gear

LX234540
LX234540-UN-27FEB15

Always drive in highest possible gear with reduced engine speed.

Select the gear so that the speed (A) of the unloaded motor is reduced by 150-250 rpm (B) during operation.

NOTE: Reduce the speed to less than 2000 rpm for light workloads. Select the gear so that the speed is reduced by 200-300 rpm.

OULXA64,0003B34-19-20160115
