Hydraulic Trailer Brakes

LX266714-UN-18JAN16

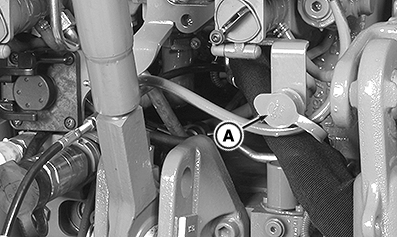

Pull dust cover off coupler (A). Connect the pressure hose. Make sure the connections are absolutely clean.

Press down on brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.

CAUTION: Never exceed a speed of 25 km/h (15 mph) when travelling with hydraulically braked trailers.

IMPORTANT: To prevent undue wear on the brakes, observe the following:

Make sure that the pressure hose is connected.

Select the same gear for both downhill and uphill driving.

Make sure that the hydraulic trailer brake has been checked and is operating properly.

NOTE: The tractor park brake has no effect on the hydraulic trailer brake. Operate the trailer in accordance with the manufacturer's instructions. This is particularly important when operating the park brake of the trailer.
