Hitch - Set the Depth Control Stop

LX266723-UN-19JAN16

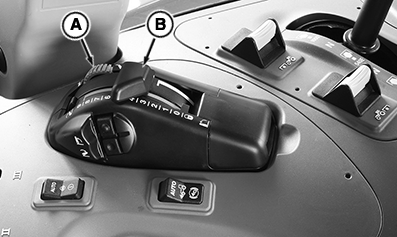

Press down the depth control stop (A) and set the desired operating depth.

After the implement has been raised, the same operating depth will be reached the next time it is lowered with the depth control (B) (noticeable resistance).
