Hitch - Float Position

LX266724-UN-19JAN16

LX1056828-UN-28FEB13

LX1049979-UN-18MAY11

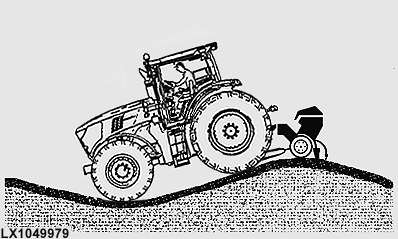

In float position (for implements with gauge wheel), implement can move freely up and down to follow ground contours independently of the tractor.

To activate the float position, configure the settings as follows:

1. Turn the draft/depth control knob (A) counterclockwise beyond “1” until it reaches the stop.

2. Move the depth control (B) completely forward, until it reaches the stop.
