Select Standard Speed of Rear PTO

LX266738-UN-19JAN16

LX1056888-UN-08JUL13

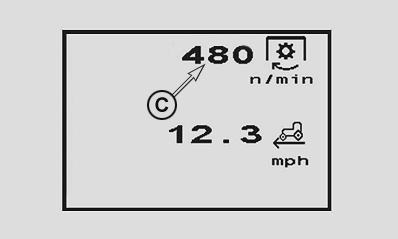

Speed with PTO Disengaged

LX1056706-UN-11JUL12

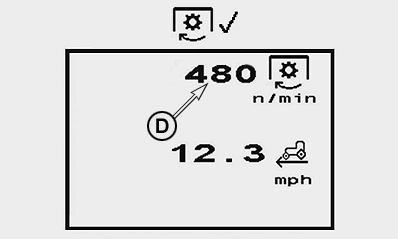

Speed with PTO Engaged

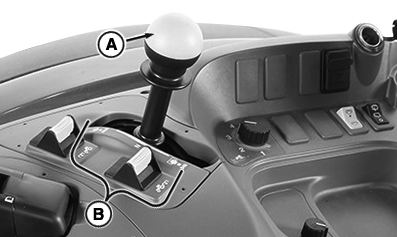

A - PTO Speed Lever

B - Decal with Shift Pattern for PTO Speed

C - Speed with PTO Disengaged

D - Speed with PTO Engaged

CAUTION: Before engaging the PTO, make sure that selected PTO speed is correct for the implement attached. Incorrect speed could result in severe damage to the implement.

Danger of accidents!

The PTO is engaged and disengaged as described under Operating PTOs. The PTO must be disengaged to select standard PTO speed.

PTO speed is selected by means of lever (A) as shown on decal (B). With the lever in the position(s) "N", the PTO shaft can be turned by hand to facilitate universal-jointed shaft connection.

The selected PTO speed is displayed in field (C) or (D) on the digital display.

CAUTION: Engine must be shut off when an implement is being connected.
