Hydraulic Pick-Up Hitch (Mechanically Actuated)

LX266748
LX266748-UN-22JAN16

LX1045867
LX1045867-UN-15FEB11

LX1045868
LX1045868-UN-15FEB11

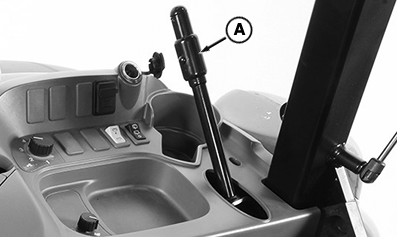

A - Release Lever

1 - Hitch in Position for Attaching Trailer

2 - Hitch in Stored Position


This type of hitch can be operated using the hitch controls and one selective control valve.

  1. Raise draft links to maximum height and use SCV to retract the hitch hook fully.

  2. Pull release lever (A) and lower the draft links. Hold the release lever until the hitch hook has moved from the stored position (lever remains in open position).

  3. Extend the hitch hook fully by actuating the selective control valve.

  4. Lower draft links/hitch hook to desired height.

  5. Raise the draft links so that the hitch hook engages in the towing eye of the implement, then fully raise the pick-up hitch.

  6. Retract the hitch hook fully by means of selective control valve until it is fully locked (lever B returns to its starting position).

  7. Lower the draft links.

  8. Check that the hitch is locked correctly. If this is the case, it will not lower when the draft links are lowered and not extend when the selective control valve is operated.

IMPORTANT: If the release lever is hard to operate or locking the hitch hook is not performed automatically (step 2 or step 6 above), have your John Deere dealer check the setting of the lift links or of the pick-up hitch hook.



CAUTION:

LX1045869
LX1045869-UN-15FEB11

Before driving away, make sure the trailer hitch is fully raised and locked in both horizontal and vertical positions.

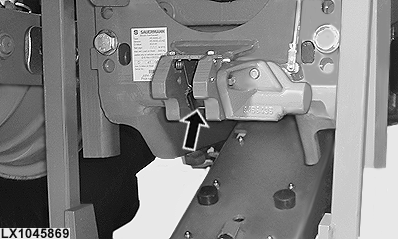

With the hitch lowered, NEVER reach into the receiver opening (see arrow). Risk of injury!

NOTE: Pick-up hitch components that are subject to wear must be checked every 250 hours (see Service / Every 250 Hours). Replace them if necessary.

Maximum permissible static vertical loads and towed loads are stated in the Specifications section.

LX1045870
LX1045870-UN-15FEB11

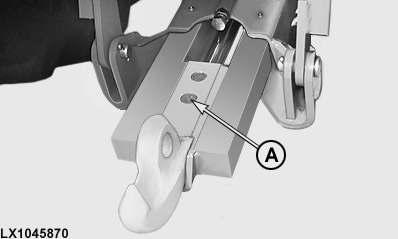

The hook of the pick-up hitch can be replaced by a drawbar without the use of tools. To do so, lift out pin (A).

The part not required can be stored in a holder on the side-frame.

OULXA64,0003B65-19-20160120
