Access to Fuses

.

LX266749-UN-22JAN16

Cab Fuse Box (LCS)

LX266750-UN-22JAN16

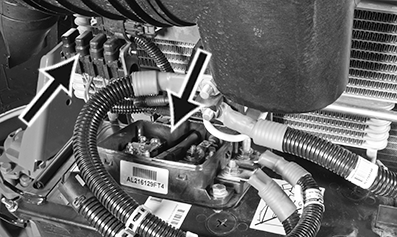

Fuses in Front of Radiator above Battery for PLB, Engine Control Unit (ECU) and Battery Disconnect Switch (BBO)

LX266751-UN-22JAN16

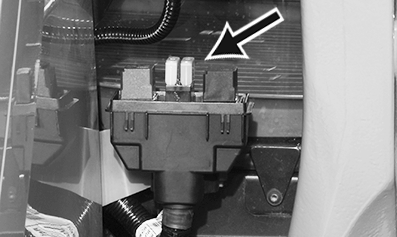

Fuse Box in Front of Cab, Left Side (PSB)

LX1057469-UN-22AUG14

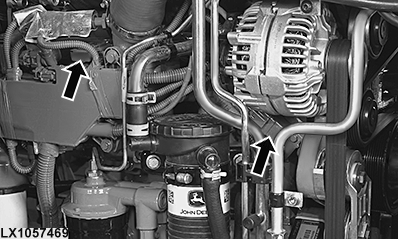

Fuse and Relay on Right Side of Engine

The fuses and relays of the Load Center Secondary circuit (LCS) are located in the left console.

The fuses of the engine control unit (ECU) and battery disconnect switch (BBO) are located in front of the radiator above the battery.

The fuses of the Power Link Box (PLB) are located in front of the radiator, above the battery.

The fuses and relays of the Power Socket Box (PSB) are located on the left in front of the cab.

The fuse and relay of the electrical starting aid are located on the right side of the engine.
