Change Engine Oil

LX1053341-UN-28FEB12

LX266766-UN-26JAN16

LX1049783-UN-12AUG10

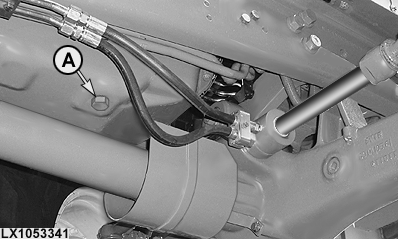

A - Oil Drain Screw

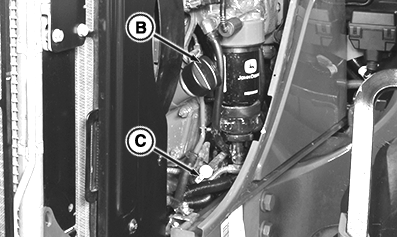

B - Oil Filler Neck

C - Dipstick

IMPORTANT: Use oil with a viscosity suitable for the relevant season.

NOTE: Change the engine oil after every 500 operating hours, but at least once every year.

Drain oil with engine shut off, but with engine still warm.

1. Perform oil change while the engine oil is warm (approx. 40°C; 103°F). Shut down the engine.

2. Place a suitable container underneath to trap the oil, and remove drain screw (A).

3. While crankcase is draining, replace filter element.

4. Re-install oil drain screw and tighten to 50 N·m (37 lb.-ft.). Use a new sealing washer.

5. Fill crankcase with fresh oil of proper viscosity at filler neck (B). See the Fuel, Lubricants, Hydraulic Oil and Coolant section.

   Item	Measurement	Specification
   Quantity for filling	Quantity	approx. 16 L Approx. 4.2 U.S. gal.

6. Use dipstick (C) to check the oil level. Oil level must be in the upper part of the hatched area on the dipstick. Fill to proper level, if necessary.

7. Run engine for a short time and check for leaks at filter base and oil drain screw.

8. Shut off engine.

9. Check oil level once again. It must be up to the top mark on the dipstick.

   NOTE: Also see “Check Engine Oil Level”, in Section 90.
