Two-Piece Front Axle — Tread Widths for Front Wheels with Rims for 8 Positions

LX1057502-UN-26MAY15

Two-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 8 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop - Front Axle 730, 733 and 735” and “Preventing Front Wheel or Fender Contact with Tractor Components” in this Section.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

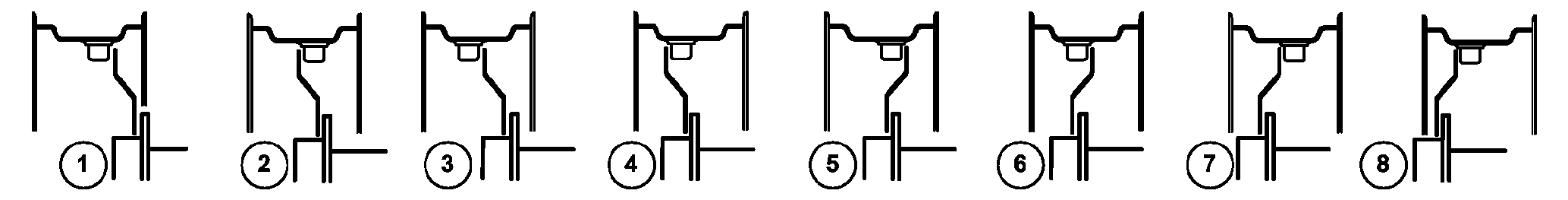

LX1053401-UN-15AUG13

		Tread width on delivery	Front wheel tread widths Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
13.6R24	mm	1716	2022	1920	1818	1716	1622	1520	1418	—**
	in.	67.56	79.61	75.59	71.57	67.56	63.86	59.84	55.83
13.6R28	mm	1714	2022	1918	1818	1714	1622	1518	1418	—**
	in.	67.48	79.61	75.51	71.57	67.48	63.86	59.76	55.83
14.9R24	mm	1716	2022	1920	1818	1716	1622	1520	—**	—**
	in.	67.56	79.61	75.59	71.57	67.56	63.86	59.84
14.9R28	mm	1714	2022	1918	1818	1714	1622	1518	—**	—**
	in.	67.48	79.61	75.51	71.57	67.48	63.86	59.76
16.9R24	mm	1718	2016	1914	1820	1718	1616	—**	—**	—**
	in.	67.64	79.37	75.35	71.65	67.64	63.62
320/85R24	mm	1736	2042	1940	1838	1736	1642	1540	1438	1336
	in.	68.35	80.39	76.38	72.36	68.35	64.65	60.63	56.61	52.60
320/85R28	mm	1736	2044	1940	1840	1736	1644	1540	1440	—**
	in.	68.35	80.47	76.38	72.44	68.35	64.72	60.63	56.69
340/85R24	mm	1736	2042	1940	1838	1736	1642	1540	1438	—**
	in.	68.35	80.39	76.38	72.36	68.35	64.65	60.63	56.61
340/85R28	mm	1736	2044	1940	1840	1736	1644	1540	1440	—**
	in.	68.35	80.47	76.38	72.44	68.35	64.72	60.63	56.69
360/70R24	mm	1716	2022	1920	1818	1716	1622	1520	1418	1316
	in.	67.56	79.61	75.59	71.57	67.56	63.86	59.84	55.83	51.81
380/70R24	mm	1716	2022	1920	1818	1716	1622	1520	1418	—**
	in.	67.56	79.61	75.59	71.57	67.56	63.86	59.84	55.83
380/70R28	mm	1714	2022	1918	1818	1714	1622	1518	—**	—**
	in.	67.48	79.61	75.51	71.57	67.48	63.86	59.76
380/85R24	mm	1736	2042	1940	1838	1736	1642	1540	1438	—**
	in.	68.35	80.39	76.38	72.36	68.35	64.65	60.63	56.61
380/85R28	mm	1736	2044	1940	1840	1736	1644	1540	—**	—**
	in.	68.35	80.47	76.38	72.44	68.35	64.72	60.63
420/70R24	mm	1716	2022	1920	1818	1716	1622	1520	—**	—**
	in.	67.56	79.61	75.59	71.57	67.56	63.86	59.84
420/70R28	mm	1714	2022	1918	1818	1714	1622	1518	—**	—**
	in.	67.48	79.61	75.51	71.57	67.48	63.86	59.76
420/85R24	mm	1736	2042	1940	1838	1736	1642	1540	—**	—**
	in.	68.35	80.39	76.38	72.36	68.35	64.65	60.63
440/65R24	mm	1720	2018	1916	1822	1720	1618	1516	—**	—**
	in.	67.72	79.45	75.43	71.73	67.72	63.70	59.68
480/65R24	mm	1720	2018*	1916	1822	1720	1618	1516	—**	—**
	in.	67.72	79.45*	75.43	71.73	67.72	63.70	59.68
480/65R28	mm	1714	2022*	1918	1818	1714	1622	—**	—**	—**
	in.	67.48	79.61**	75.51	71.57	67.48	63.86
480/70R24	mm	1718	2016*	1914	1820	1718	1616	—**	—**	—**
	in.	67.64	79.37*	75.35	71.65	67.64	63.62
540/65R24	mm	1718	2016*	1914	1820	1718	—**	—**	—**	—**
	in.	67.64	79.37*	75.35	71.65	67.64
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations must be observed. ** Installation in this position is not allowed
