Front-Wheel Tread Adjustment with Rims for 16 Positions

LX1057502-UN-26MAY15

Two-Piece Front Axle

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop - Front Axle 730, 733 and 735” and “Preventing Front Wheel or Fender Contact with Tractor Components” in this Section.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2,55 m (100 in.).

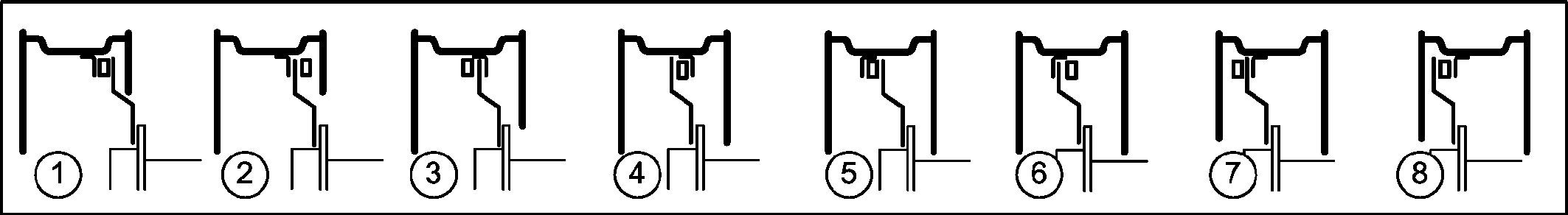

LX1053419-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

		Tread width on delivery	Front wheel tread widths Arrangement of rim and wheel dish
Tires:			1	2	3	4	5	6	7	8
11.2R28	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
12.4R24	mm	1720	2016	1986	1954	1924	1812	1782	1750	1720
	in.	67.72	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
12.4R28	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
13.6R24	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
13.6R28	mm	1812	2014	1984	1952	1922	1810	1780	1748	1718
	in.	71.34	79.29	78.11	76.85	75.67	71.26	70.08	68.82	67.64
14.9R24	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
14.9R28	mm	1812	2014	1984	1952	1922	1810	1780	1748	1718
	in.	71.34	79.29	78.11	76.85	75.67	71.26	70.08	68.82	67.64
16.9R24	mm	1812	2014	1984	1952	1922	1810	1780	1748	1718
	in.	71.34	79.29	78.11	76.85	75.67	71.26	70.08	68.82	67.64
280/85R28	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
320/85R24	mm	1834	2036	2006	1974	1944	1832	1802	1770	1740
	in.	72.20	80.16	78.98	77.72	76.54	72.13	70.94	69.68	68.50
320/85R28	mm	1834	2036	2006	1974	1944	1832	1802	1770	1740
	in.	72.20	80.16	78.98	77.72	76.54	72.13	70.94	69.68	68.50
340/85R24	mm	1834	2036	2006	1974	1944	1832	1802	1770	1740
	in.	72.20	80.16	78.98	77.72	76.54	72.13	70.94	69.68	68.50
340/85R28	mm	1834	2036	2006	1974	1944	1832	1802	1770	1740
	in.	72.20	80.16	78.98	77.72	76.54	72.13	70.94	69.68	68.50
360/70R24	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
380/70R24	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
380/70R28	mm	1812	2014	1984	1952	1922	1810	1780	1748	1718
	in.	71.34	79.29	78.11	76.85	75.67	71.26	70.08	68.82	67.64
380/85R24	mm	1834	2036	2006	1974	1944	1832	1802	1770	1740
	in.	72.20	80.16	78.98	77.72	76.54	72.13	70.94	69.68	68.50
380/85R28	mm	1834	2036	2006	1974	1944	1832	1802	1770	1740
	in.	72.20	80.16	78.98	77.72	76.54	72.13	70.94	69.68	68.50
420/70R24	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
420/70R28	mm	1812	2014	1984	1952	1922	1810	1780	1748	1718
	in.	71.34	79.29	78.11	76.85	75.67	71.26	70.08	68.82	67.64
420/85R24	mm	1834	2036	2006	1974	1944	1832	1802	1770	1740
	in.	72.20	80.16	78.98	77.72	76.54	72.13	70.94	69.68	68.50
440/65R24	mm	1814	2016	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37	78.19	76.93	75.75	71.34	70.16	68.90	67.72
480/65R24	mm	1814	2016*	1986	1954	1924	1812	1782	1750	1720
	in.	71.42	79.37*	78.19	76.93	75.75	71.34	70.16	68.90	67.72
480/70R24	mm	1812	2014*	1984	1952	1922	1810	1780	1748	1718
	in.	71.34	79.29*	78.11	76.85	75.67	71.26	70.08	68.82	67.64
540/65R24	mm	1812	2014*	1984*	1952*	1922	1810	1780	1748	1718
	in.	71.34	79.29*	78.11*	76.85*	75.67	71.26	70.08	68.82	67.64
270/80R36	mm	1818	2022	1992	1952	1922	1818	1788	1748	1718
	in.	71.57	79.61	78.42	76.85	75.67	71.57	70.39	68.82	67.64
270/95R32	mm	1818	2022	1992	1952	1922	1818	1788	1748	1718
	in.	71.57	79.61	78.42	76.85	75.67	71.57	70.39	68.82	67.64
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations must be observed. ** Installation in this position is not allowed

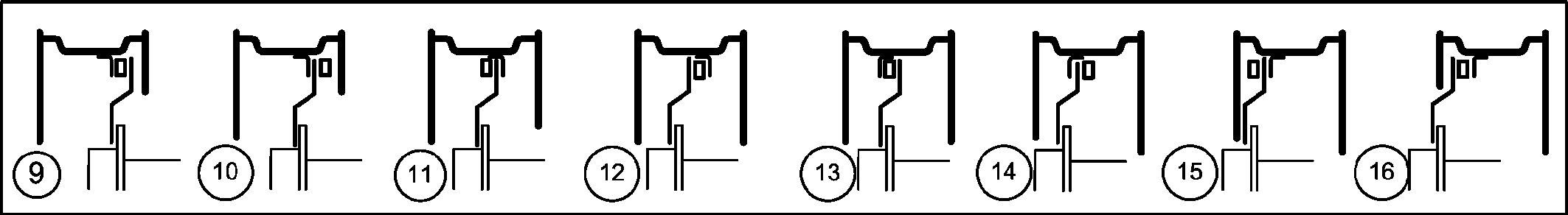

LX1053420-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

		Tread width on delivery	Front wheel tread widths Arrangement of rim and wheel dish
Tires:			9	10	11	12	13	14	15	16
11.2R28	mm	1814	1616	1586	1554	1524	1412	1382	1350	1320
	in.	71.42	63.62	62.44	61.18	60.00	55.59	54.41	53.15	51.97
12.4R24	mm	1720	1616	1586	1554	1524	1412	1382	1350	1320
	in.	67.72	63.62	62.44	61.18	60.00	55.59	54.41	53.15	51.97
12.4R28	mm	1814	1616	1586	1554	1524	1412	1382	—**	—**
	in.	71.42	63.62	62.44	61.18	60.00	55.59	54.41
13.6R24	mm	1814	1616	1586	1554	1524	1412	1382	—**	—**
	in.	71.42	63.62	62.44	61.18	60.00	55.59	54.41
13.6R28	mm	1812	1614	1584	1552	1522	—**	—**	—**	—**
	in.	71.34	63.54	62.36	61.10	59.92
14.9R24	mm	1814	1616	1586	1554	1524	—**	—**	—**	—**
	in.	71.42	63.62	62.44	61.18	60.00
14.9R28	mm	1812	1614	1584	1552	1522	—**	—**	—**	—**
	in.	71.34	63.54	62.36	61.10	59.92
16.9R24	mm	1812	1614	1584	1552	1522	—**	—**	—**	—**
	in.	71.34	63.54	62.36	61.10	59.92
280/85R28	mm	1814	1616	1586	1554	1524	1412	1382	1350	1320
	in.	71.42	63.62	62.44	61.18	60.00	55.59	54.41	53.15	51.97
320/85R24	mm	1834	1636	1606	1574	1544	1432	1402	1370	1340
	in.	72.20	64.41	63.23	61.97	60.79	56.38	55.20	53.94	52.76
320/85R28	mm	1834	1636	1606	1574	1544	1432	1402	1370	—**
	in.	72.20	64.41	63.23	61.97	60.79	56.38	55.20	53.94
340/85R24	mm	1834	1636	1606	1574	1544	1432	1402	1370	—**
	in.	72.20	64.41	63.23	61.97	60.79	56.38	55.20	53.94
340/85R28	mm	1834	1636	1606	1574	1544	1432	1402	—**	—**
	in.	72.20	64.41	63.23	61.97	60.79	56.38	55.20
360/70R24	mm	1814	1616	1586	1554	1524	1412	1382	1350	1320
	in.	71.42	63.62	62.44	61.18	60.00	55.59	54.41	53.15	51.97
380/70R24	mm	1814	1616	1586	1554	1524	1412	1382	—**	—**
	in.	71.42	63.62	62.44	61.18	60.00	55.59	54.41
380/70R28	mm	1812	1614	1584	1552	1522	—**	—**	—**	—**
	in.	71.34	63.54	62.36	61.10	59.92
380/85R24	mm	1834	1636	1606	1574	1544	1432	—**	—**	—**
	in.	72.20	64.41	63.23	61.97	60.79	56.38
380/85R28	mm	1834	1636	1606	1574	1544	—**	—**	—**	—**
	in.	72.20	64.41	63.23	61.97	60.79
420/70R24	mm	1814	1616	1586	1554	1524	—**	—**	—**	—**
	in.	71.42	63.62	62.44	61.18	60.00
420/70R28	mm	1812	1614	1584	1552	1522	—**	—**	—**	—**
	in.	71.34	63.54	62.36	61.10	59.92
420/85R24	mm	1834	1636	1606	1574	1544	—**	—**	—**	—**
	in.	72.20	64.41	63.23	61.97	60.79
440/65R24	mm	1814	1616	1586	1554	1524	—**	—**	—**	—**
	in.	71.42	63.62	62.44	61.18	60.00
480/65R24	mm	1814	1616	1586	1554	1524	—**	—**	—**	—**
	in.	71.42	63.62	62.44	61.18	60.00
480/70R24	mm	1812	1614	1584	—**	—**	—**	—**	—**	—**
	in.	71.34	63.54	62.36
540/65R24	mm	1812	—**	—**	—**	—**	—**	—**	—**	—**
	in.	71.34
270/80R36	mm	1818	1622	1592	1552	1522	1418	1388	1348	—**
	in.	71.57	63.86	62.68	61.10	59.92	55.83	54.65	53.07
270/95R32	mm	1818	1622	1592	1552	1522	1418	1388	1348	—**
	in.	71.57	63.86	62.68	61.10	59.92	55.83	54.65	53.07
* Total vehicle width greater than 2,55 m; the regional road traffic licensing regulations must be observed. ** Installation in this position is not allowed
