Dimensions - 6095MC to 6115MC Tractors, Without Front-Wheel Drive Axle

LX1056907-UN-06JUN13

LX1056908-UN-06JUN13

	Cab without Low Profile	Low Profile Cab

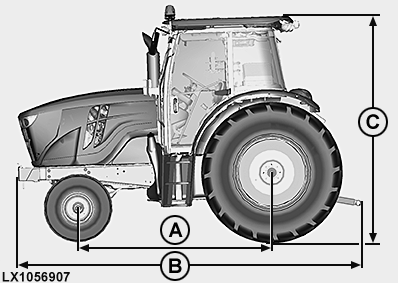

A - Wheelbase..............	2400 mm (94.5 in.)	2400 mm (94.5 in.)
B - Length
• Basic weight to draft link in horizontal position ..............	4305 mm (169.5 in.)	4305 mm (169.5 in.)
• Front weight to draft link in horizontal position..............	4727 mm (186.1 in.)	4727 mm (186.1 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 700..............	2620 mm (103.1 in.)	2538 mm (99.9 in.)
• SRI 725..............	2645 mm (104.1 in.)	2563 mm (100.9 in.)
• SRI 750..............	2670 mm (105.1 in.)	2588 mm (101.9 in.)
• SRI 775..............	2695 mm (106.1 in.)	2613 mm (102.9 in.)
• SRI 800..............	2720 mm (107.1 in.)	2638 mm (103.9 in.)
• SRI 825 ..............	2745 mm (108.1 in.)	2663 mm (104.8 in.)

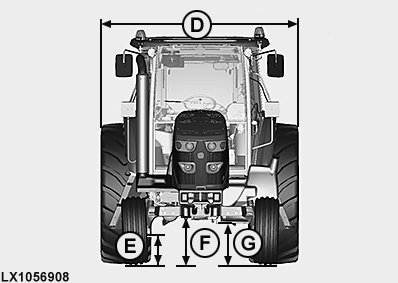

D - Width
• Front axle - flange to flange ..............	1530 mm (60.2 in.)	1530 mm (60.2 in.)
• Front axle - maximum tread width without extension ..............	2040 mm (80.3 in.)	2040 mm (80.3 in.)
• Rear axle - flange to flange ..............	1552 mm (61.1 in.)	1552 mm (61.1 in.)
• Maximum width for road travel	2550 mm (100.4 in.)	2550 mm (100.4 in.)
E - Ground Clearance at Front Axle Steering Knuckle
- Maximum ground clearance with front tires with an SRI of:
• SRI 390..............	346 mm (13.6 in.)	346 mm (13.6 in.)
• SRI 425..............	381 mm (15.0 in.)	381 mm (15.0 in.)
• SRI 450 ..............	406 mm (16.0 in.)	406 mm (16.0 in.)
F - Ground Clearance at Front Axle
- Maximum ground clearance with front tires with an SRI of:
• SRI 390..............	572 mm (22.5 in.)	572 mm (22.5 in.)
• SRI 425..............	607 mm (23.9 in.)	607 mm (23.9 in.)
• SRI 450 ..............	632 mm (24.9 in.)	632 mm (24.9 in.)
G - Ground Clearance at Differential Housing (with Drawbar)
- Maximum ground clearance with rear tires with an SRI of:
• SRI 700..............	348 mm (13.7 in.)	348 mm (13.7 in.)
• SRI 725..............	373 mm (14.7 in.)	373 mm (14.7 in.)
• SRI 750..............	398 mm (15.7 in.)	398 mm (15.7 in.)
• SRI 775..............	423 mm (16.7 in.)	423 mm (16.7 in.)
• SRI 800..............	448 mm (17.6 in.)	448 mm (17.6 in.)
• SRI 825 ..............	473 mm (18.6 in.)	473 mm (18.6 in.)

IMPORTANT: Ground clearance and height of the tractor depend on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.
