Dimensions - 6095RC to 6115RC Tractors, With Front-Wheel Drive Axle

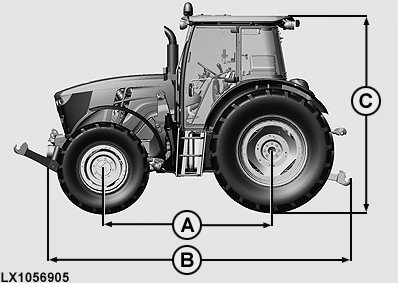

LX1056905-UN-13MAR13

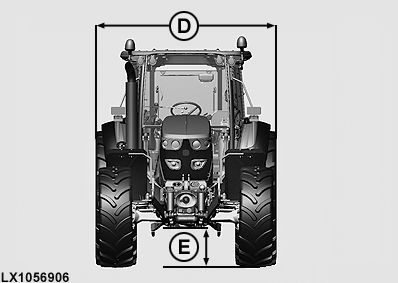

LX1056906-UN-13MAR13

	Cab without Low Profile
A - Wheelbase..............	2400 mm (94.5 in.)
B - Length
• Basic weight to draft link in horizontal position ..............	4305 mm (169.5 in.)
• Front weight to draft link in horizontal position..............	4727 mm (186.1 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 700..............	2620 mm (103.1 in.)
• SRI 725..............	2645 mm (104.1 in.)
• SRI 750..............	2670 mm (105.1 in.)
• SRI 775..............	2695 mm (106.1 in.)
• SRI 800..............	2720 mm (107.1 in.)
• SRI 825 ..............	2745 mm (108.1 in.)
D - Width
• Front axle - flange to flange ..............	1530 mm (60.2 in.)
• Front axle - maximum tread width without extension ..............	2040 mm (80.3 in.)
• Rear axle - flange to flange ..............	1552 mm (61.1 in.)
• Maximum width for road travel ..............	2550 mm (100.4 in.)
E - Ground Clearance
- Maximum ground clearance at front-wheel drive axle, with front tires with an SRI of:
• SRI 550 ..............	413 mm (16.3 in.)
• SRI 575 ..............	438 mm (17.2 in.)
• SRI 600 ..............	463 mm (18.2 in.)
• SRI 625 ..............	488 mm (19.2 in.)
• SRI 650 ..............	513 mm (20.2 in.)
- Maximum ground clearance at differential housing with drawbar, with rear tires with an SRI of:
• SRI 700..............	348 mm (13.7 in.)
• SRI 725..............	373 mm (14.7 in.)
• SRI 750..............	398 mm (15.7 in.)
• SRI 775..............	423 mm (16.7 in.)
• SRI 800..............	448 mm (17.6 in.)
• SRI 825 ..............	473 mm (18.6 in.)

IMPORTANT: Ground clearance and height of the tractor depend on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.
