Fuse and Relays of Battery Cut-Off Switch (BBO)

General information

LX266773-UN-29JAN16

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Have battery cut-off relay A136 checked and if necessary replaced by an authorized dealer.

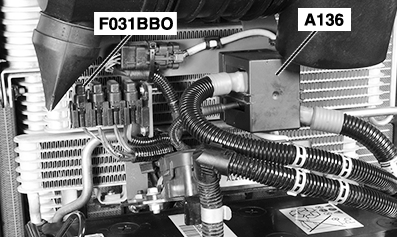

Fuse and relays of battery cut-off switch, Battery Break Off circuit (BBO), are located in front of the radiator, above the battery.

Open the hood.

Release the latch and remove the cover of the fuse.

Check the 10 A fuse (F031BBO) and replace it if necessary.

Install covers and close the hood.

Fuse and relay

Fuse no.	Fuse rating (amps)	Consumer	Relay no.	Rating (amps)	Consumer
F031BBO	10 A	Fuse for Battery Power Supply (with Battery Cut-Off Switch Only)	A136	300 A max.	Battery Cut-Off Relay
