Fuses and Relays (LCS) and (FRM), General Information

General information

LX1030768-UN-20JAN03

LX266749-UN-22JAN16

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one stated in the table.

IMPORTANT: Some fuse positions are vacant when the tractor is delivered; these must be left vacant until the appropriate options are retro-fitted.

NOTE: Depending on how the tractor is equipped, it may not have all the fuses and relays shown below.

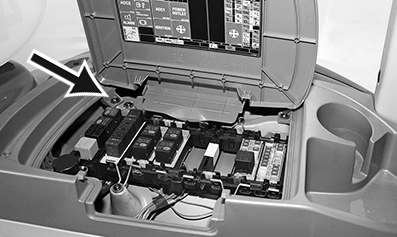

The fuse box of the FRaMe circuit (FRM) is located within the frame of the fuse and relay box (LCS) behind the operator's seat, below the rear window.

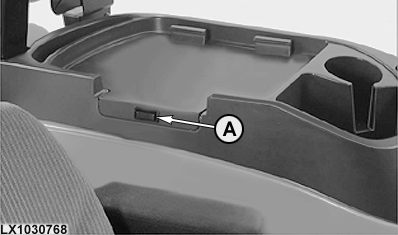

Press catches (A) and remove cover of fuse and relay box (LCS).

Check the fuses and relays and replace them if necessary.

Summary — Fuses and relays (LCS) and (FRM)

LX270754-UN-25JAN16

Fuses and Relays (LCS) and (FRM)
