Selective Control Valves - Maximum Permissible Oil Withdrawal

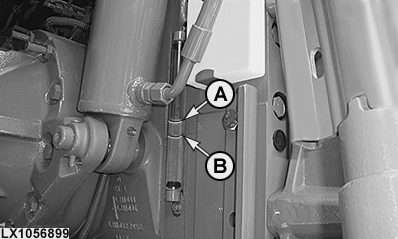

LX1056899-UN-04JUN13

A - Maximum Mark

B - Minimum Mark

IMPORTANT: For maximum oil withdrawal to take place, the following conditions must be met:

• Maximum transmission oil level (A) when engine is off
• Tractor inclined by no more than 3° in any direction
• Hydraulic oil at operating temperature
• Vehicle speed is less than 3 km/h (1.9 mph)

Maximum permissible oil withdrawal
Without additional oil reservoir..............	15 l (4.0 US gal)
With additional oil reservoir1..............	27 L (7.1 U.S. gal.)*

During maximum oil withdrawal, the tractor must not be inclined in any direction by more than 3°. If the tractor is inclined, only a correspondingly lower quantity of oil may be withdrawn.

If required, up to 10 liters (2.6 U.S. gal.) may be added to the transmission case; this increases the amount that may be withdrawn accordingly. If oil level is above the maximum mark on the sight glass, do NOT perform any transport tasks at speeds above 40 km/h (25 mph).

NOTE: Never perform heavy jobs such as towing, operating a PTO or driving fast when withdrawal results in the transmission oil level dropping below the minimum mark.

When topping up, use only recommended transmission/hydraulic oil. See Transmission and Hydraulic Oil in Section Fuel, Lubricants, Hydraulic Oil and Coolant.

* Only when tractor is stationary. See also “Oil Withdrawal” in Section “Specifications”.
