Emergency Exits

LX1054649
LX1054649-UN-30JAN12

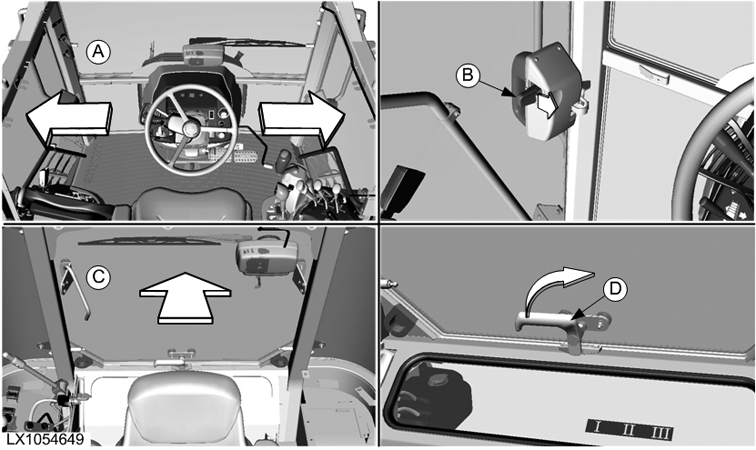

In an emergency, it is possible to exit the cab through the two doors (A). To do this, pull lever (B) to release the door and then push it open.

In an emergency, rear window (C) can be opened to permit the operator to leave the cab. Turn lever (D) to the right to release the window and then push it open.

If the tractor is not equipped with a door on the right side, the side windows must be used as emergency exits. In this case, it is necessary to smash the glass panels using an emergency hammer (if equipped).

LX1035425
LX1035425-UN-10DEC04

A - Lever

B - Retaining Pins

The sun roof (if equipped) can also be used as an emergency exit. To do this, use levers (A) to open the roof, take out retaining pins (B) and open the sun roof fully.

OULXBER,0001BC3-19-20120131
