Vehicle Monitor
|
|
A "priority" is the STOP ENGINE, SERVICE ALERT, or INFORMATION indicators. A "system" refers to engine, transmission, hydraulic, or electrical indicators. A "function" refers to pressure, temperature, level, or filter. A "status" indicates operational mode. |
AG,RX15494,2623 -19-27OCT99-1/2 |

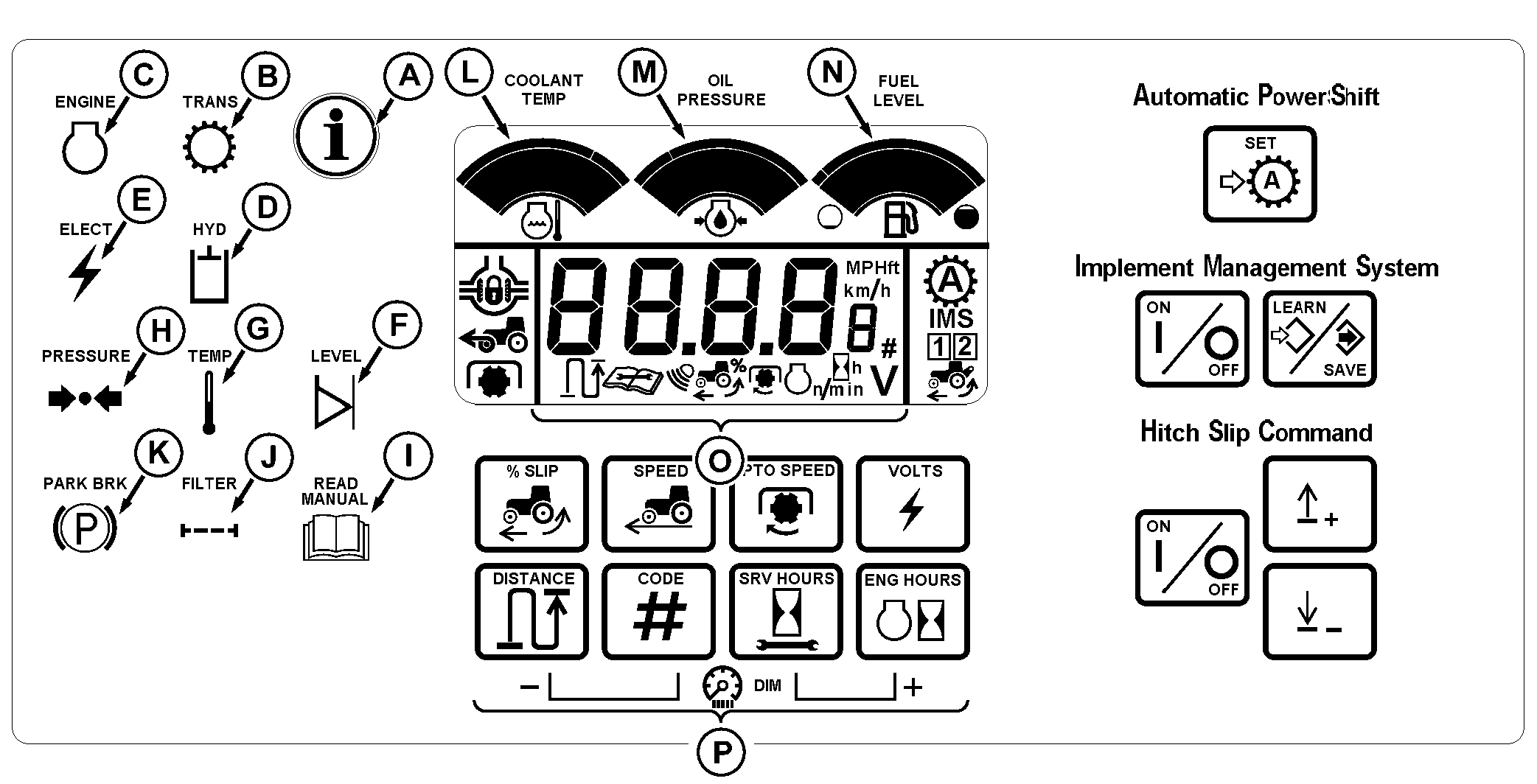

| KEY | INDICATOR | Level | FUNCTION |
|---|---|---|---|
| A | INFORMATION | Priority | Problem has developed possibly reducing performance-Continue to operate and address problem when convenient-Push Code # and check displayed code-Indicator flashes in conjunction with a "System", "Function", or "Status" indicator |
| B | Transmission | System | Flashes in conjunction with "Priority" and "Function" indicators |
| C | Engine | System | Flashes in conjunction with "Priority" and "Function" indicators |
| D | Hydraulic | System | Flashes in conjunction with "Priority" and "Function" indicators |
| E | Electrical | System | Flashes in conjunction with "Priority" and "Function" indicators |
| F | Level | Function | Flashes in conjunction with "Priority" and "System" indicators |
| G | Temperature | Function | Flashes in conjunction with "Priority" and "System" indicators |
| H | Oil Pressure | Function | Flashes in conjunction with "Priority" and "System" indicators |
| I | Read Manual | Status | Lights in conjunction with "Priority" indicator and "Function" indicator-See Service Sections |
| J | Filter | Function | Flashes in conjunction with "Priority" and "System" indicators |
| K | Park Brake | Status | Lights when transmission is in PARK position |
| L | Coolant Temperature | Indicates coolant temperature of engine | |
| M | Oil Pressure | Indicates oil pressure of engine | |
| N | Fuel | Indicates remaining amount of fuel-Flashes when approximately 16 gallons of fuel remains | |
| O | Digital Display * | Displays percent wheel slip, ground speed, PTO speed, distance traveled, service codes, hours since last service, electrical system voltage and total engine hours | |
| P | Function Selectors | Changes digital display functions | |
| * Wheel Slip, Ground Speed, and Distance Traveled requires radar for accurate reading | |||
AG,RX15494,2623 -19-27OCT99-2/2 |
