Adjusting Air Suspension Seat

Lumbar Support Adjustment

Rotate lever (A) to any of five positions.

Weight and Height Adjustment

Turn key switch to on position. Press switch (B) to lower seat (release pressure from air suspension). Raise the seat to adjust for individual weight and height.

Armrest Height Adjustment

Press button (C) to adjust armrest height

Fore-Aft Seat Position

Pull up on handle (D) to allow the seat to slide forward or backward.

Seat Swivel

Lift up on handle (E) to detent position to allow seat to swivel. Push down on handle to lock seat in position.

Damping

Handle (F) infinitely adjusts suspension shock. Moving lever to farthest down position provides the firmest ride; farthest up position provides softest ride.

Lateral Movement Lock

Push down on handle (G) to allow seat to move sideways. Pull up on handle to lock seat in position.

Fore-Aft Movement Lock

Pull up on handle (H) to allow seat to move fore and aft. Push down to prevent fore-aft movement.

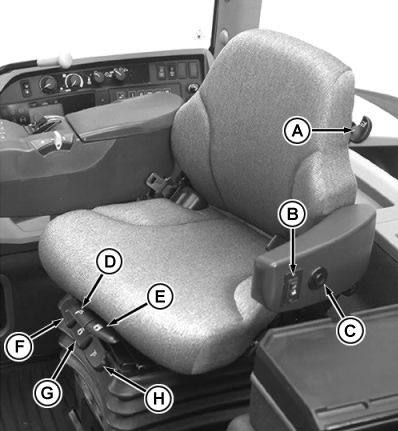

RW26066


A-Lumbar Support
B-Seat Height
C-Armrest Height
D-Fore-Aft Adjustment
E-Seat Swivel
F-Suspension Shock Damping
G-Sideways Movement Lock
H-Fore-Aft Movement Lock

AG,RX15494,2640 -19-27OCT99-1/2

Backrest Angle

Pull up handle (A) and lean on backrest to recline seat to desired angle. Handle is located on bottom left side of seat.

Armrest Control Console Height Adjustment

Push in and turn knob (B) to move console fore or aft and up or down. Knob is located on bottom right side of armrest console.
