Observing Drawbar Load Limitations

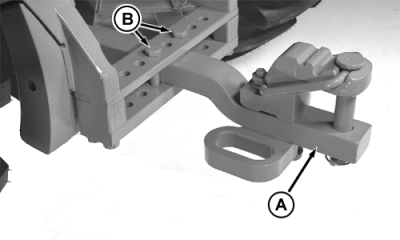

IMPORTANT: Certain heavy implements can place excessive strain on drawbar (A). Strain is greatly increased by speed and rough terrain. Maximum static vertical load on drawbar should not exceed:

  • 8110, 8210, 8310-1657 kg (3650 lb)

  • 8410-1769 kg (3900 lb)

Tighten bolts (B).

Specification

Drawbar Locking Bolts -Torque 435 N·m (322 lb-ft)

RW26276

AG,RX15494,2750 -19-27OCT99-1/1
