Adjusting Drawbar Side-to-Side

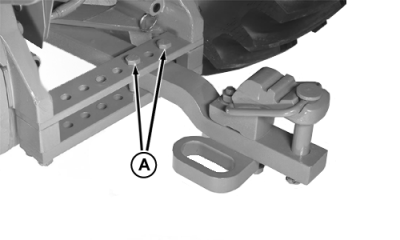

1. Remove drawbar locking bolts (A).

2. Slide drawbar to desired position.

3. Install a locking bolt against each side of drawbar. Tighten bolts.

Specification

Drawbar Locking Bolts -Torque 435 N·m (322 lb-ft)

RW26278

AG,RX15494,2753 -19-27OCT99-1/1
