Installing and Using Clevis Assembly

IMPORTANT: Remove clevis assembly, before using PTO shaft, or whenever PTO shaft might cause interference.

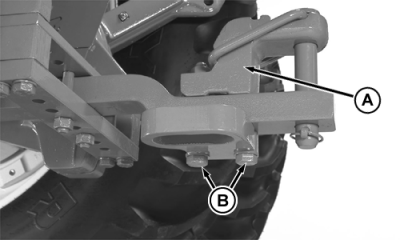

Clevis assembly (A) must be attached ONLY to top of drawbar.

Install clevis assembly and tighten cap screws (B).

Specification

Clevis Assembly Retaining Cap Screws -Torque 610 N·m (450 lb-ft)

RW26279

AG,RX15494,2754 -19-27OCT99-1/2

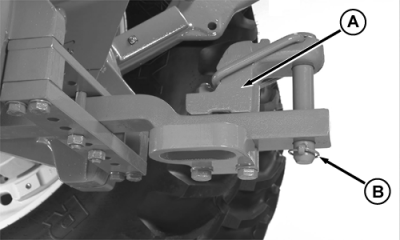

Clevis assembly (A) must be attached ONLY to top of drawbar.

Remove lock pin (B). Lift pin with handle (C) and position in notch of clevis assembly.

Attach implement.

Insert pin only through drawbar, not through clevis assembly, if towed implement also has a clevis assembly. DO NOT insert pin through all four members.

RW26280
RW26281
RW26282

AG,RX15494,2754 -19-27OCT99-2/2
