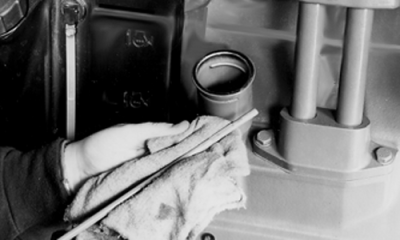

Checking Engine Oil Level

Remove dipstick and check oil level with tractor on level ground before starting tractor. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

NOTE: Cross-hitch area is considered FULL.

If needed, add oil recommended in Fuels, Lubricants and Coolant Section in filler hole.

Do not operate engine with oil level below the "ADD" mark on dipstick.

NOTE: Tighten dipstick to check oil.

RW55717
