OMAR152156: 8110, 8210, 8310, and 8410 Tractors, Block File: AG_RX15494_2864_19

Put the tractor on level ground and run the engine to warm oil.

Stop the engine and remove drain plugs (A) on bottom of differential case and transmission housing.

Reinstall plugs after oil has drained. (See Clean Transmission Filter Screen, Clean Hydraulic Oil Suction Screen and Drain Clean Oil Reservoir.)

Refill with Transmission-Hydraulic oil specified in Fuels, Lubricants, and Coolant Section.

IMPORTANT: Powershift control unit must be recalibrated when changing oil from one viscosity to another. See your John Deere Dealer.

Drain and Fill Capacity

System...	117.8 L (31 gal) ^a
System less Clean Oil Reservoir...	91.2 L (24 gal) ^a


^aCapacities are average values and may vary between oil changes

Start and run engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.

IMPORTANT: Change oil in the clean oil reservoir if oil is contaminated with water.

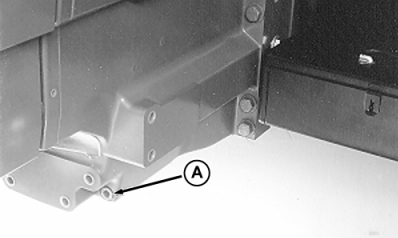

Differential Case

RW55392A

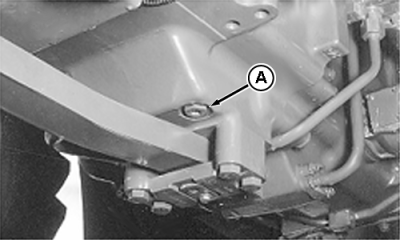

Transmission Housing

AG,RX15494,2864 -19-07FEB00-1/1
