Lubricating Front Axle

NOTE: Under normal conditions, lubricate every 250 hours.

When operating tractor in extremely wet or dusty conditions, apply several shots of John Deere Non-Clay grease to each fitting. (See Fuels, Lubricants, and Coolant Section.)

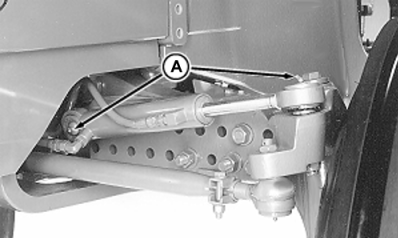

A-Steering Cylinder Ends
B-Tie Rods
C-Steering Spindles
D-Axle Pivot Pin

AG,RX15494,2869 -19-07FEB00-1/1
