Lubricating MFWD Axle

NOTE: Under normal conditions, lubricate every 250 hours.

When operating in extremely wet or dusty conditions, lubricate the MFWD front axle at 10 hour intervals.

Use John Deere Non-Clay grease. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C. (See Fuels, Lubricants, and Coolant Section.)

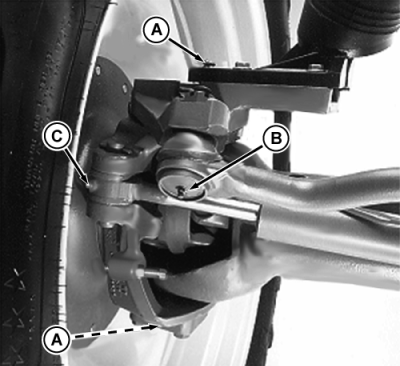

Kingpins -Apply grease to fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -Apply several shots of grease to fittings (B).

Steering Cylinder -Apply several shots of grease to fittings (C).

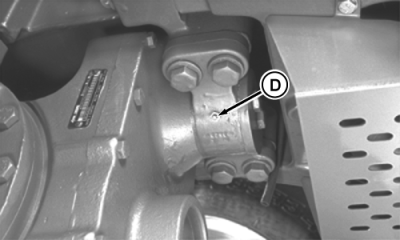

Axle Pivot -Apply several shots of grease to front and rear fittings (D).

AG,RX15494,2871 -19-07FEB00-1/1
