Replacing Front Lights

1. Remove front grille.

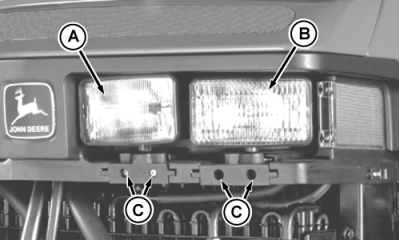

2. To replace headlight (A) or flood light (B), remove screws (C) and retainer. Unfasten connector and remove lamp housing. Twist bulb counterclockwise and pull to remove.

3. Replace bulb.

RW55419A

AG,RX15494,2888 -19-07FEB00-1/1
