Vehicle Monitor
|
|
A "PRIORITY" is the STOP ENGINE, SERVICE ALERT, or INFORMATION indicators. A "SYSTEM" refers to engine, transmission, hydraulic, electrical, or axle indicators. A "FUNCTION" refers to pressure, temperature, level, or filter. A "STATUS" indicates operational mode. |
AG,RX15494,2959 -19-11NOV99-1/2 |

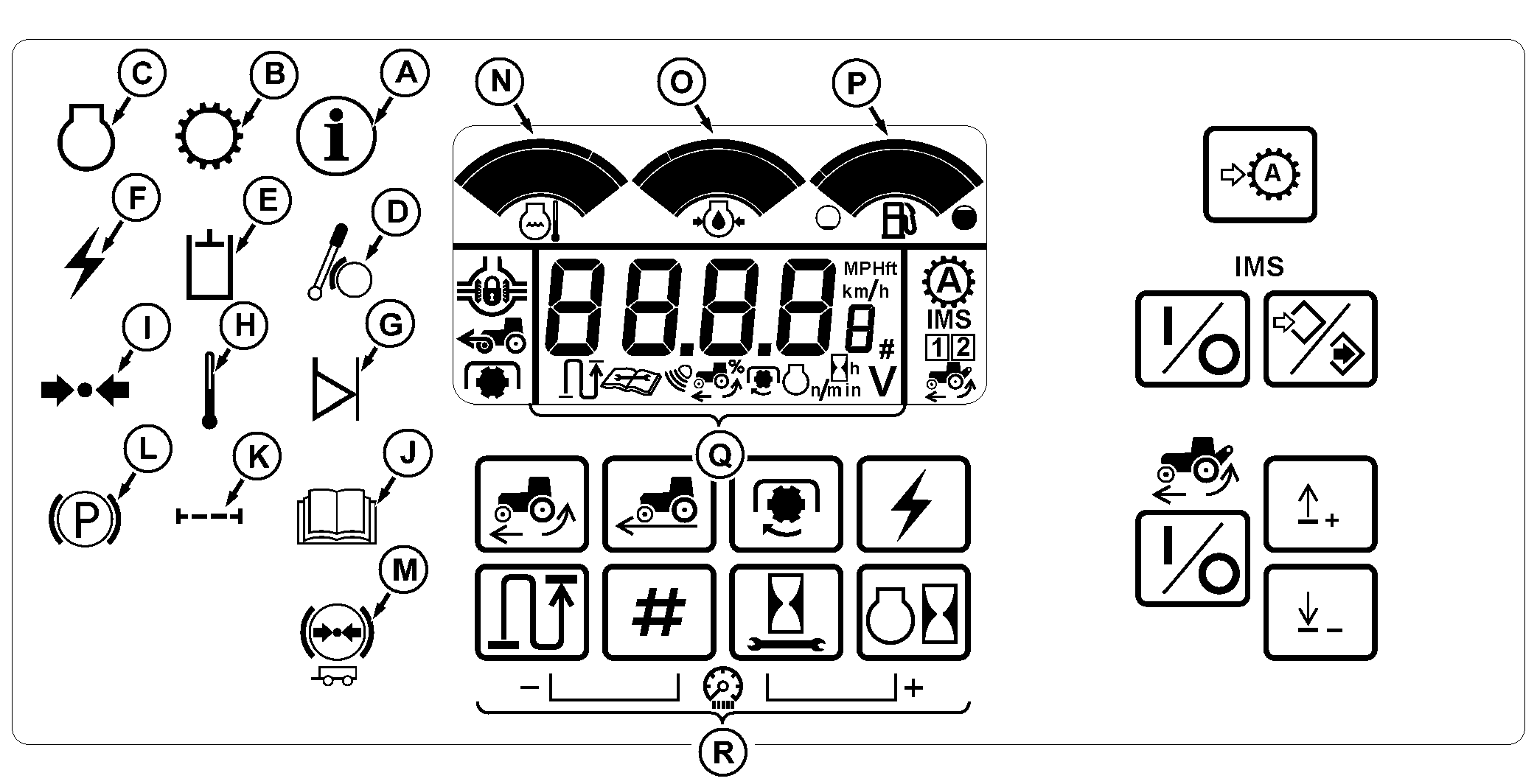

| KEY | INDICATOR | Level | FUNCTION |
|---|---|---|---|
| A | INFORMATION | Priority | Problem has developed possibly reducing performance-Continue to operate and address problem when convenient-Push Code # and check displayed code-Indicator flashes in conjunction with a "System", "Function", or "Status" indicator |
| B | Transmission | System | Flashes in conjunction with "Priority" and "Function" indicators |
| C | Engine | System | Flashes in conjunction with "Priority" and "Function" indicators |
| D | Secondary Brake | System | Secondary brake is engaged or oil level is low. Flashes in conjunction with "Service Alert" , "Priority" and "Function" indicators |
| E | Hydraulic | System | Flashes in conjunction with "Priority" and "Function" indicators |
| F | Electrical | System | Flashes in conjunction with "Priority" and "Function" indicators |
| G | Level | Function | Flashes in conjunction with "Priority" and "System" indicators |
| H | Temperature | Function | Flashes in conjunction with "Priority" and "System" indicators |
| I | Oil Pressure | Function | Flashes in conjunction with "Priority" and "System" indicators |
| J | Read Manual | Status | Lights in conjunction with "Priority" indicator and "Function" indicator-See Service Sections |
| K | Filter | Function | Flashes in conjunction with "Priority" and "System" indicators |
| L | Park Brake | Status | Lights when transmission is in PARK position |
| M | Trailer Brakes | Status | Lights when trailer brakes are engaged |
| N | Coolant Temperature | Function | Indicates coolant temperature of engine. |
| O | Oil Pressure | Function | Indicates oil pressure of engine |
| P | Fuel | Indicates remaining amount of fuel-Flashes when approximately 60 L (16 gal) of fuel remains | |
| Q | Digital Display | Displays percent wheel slip, ground speed, PTO speed, distance traveled, service codes, hours since last service, electrical system voltage and total engine hours | |
| R | Function Selectors | Changes digital display functions-(See Changing Display Functions) | |
| * Wheel Slip, Ground Speed, and Distance Traveled requires radar for accurate reading | |||
AG,RX15494,2959 -19-11NOV99-2/2 |
