Operating Turn Signals, Horn, and Head Lights

Push lever up for a right turn, or pull down for a left turn and return lever immediately to center position.

Left or right turn signal continues to flash then switches off automatically.

Cancel function by pushing lever once again and return lever to center position.

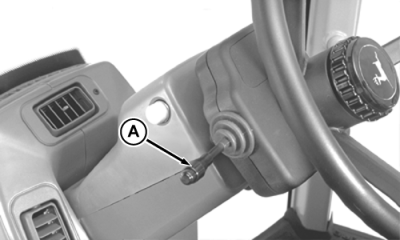

Push inward on end of lever (A) to activate horn.

Push lever (A) forward to activate high beam head lights. Pull lever into center position to operate low beam. Pull lever toward you and release to flash high beam.

Dim head lights for oncoming vehicles. Adjust head lights correctly. (See Maintenance-Electrical System Section.)

AG,RX15494,2974 -19-11NOV99-1/1
