Using Passenger Seat-Optional

CAUTION: Avoid possible injury. Use passenger seat to provide suitable seating accommodation when transporting an additional person.

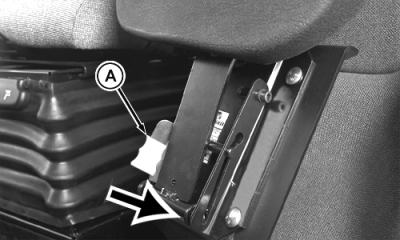

Pull lever (A) to release seat cushion from upright position.

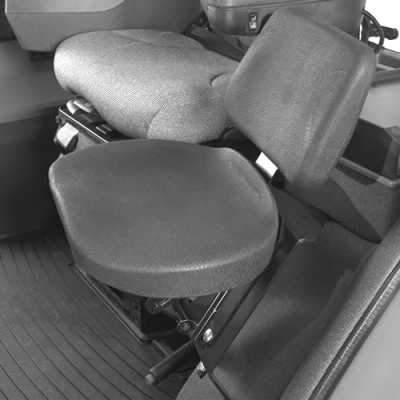

Pull seat cushion down and turn cushion before pushing seat down into position.

Pull up on cushion, turn and lock into upright position when not in use.

NOTE: Left operator seat arm rest must be in raised position.

AG,RX15494,2978 -19-11NOV99-1/1
