Using Monitor Mounts

Monitor mounting points are used to connect implement monitors to the cab.

  Mounting Locations

  A-Corner Post Display
  B-Rear Cab Post
  C-Side Console


RW26658

Corner Post

RW26659

Rear Cab Post

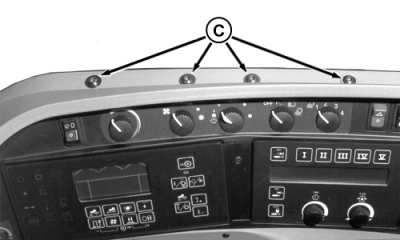

RW26695

Side Console

AG,RX15494,2992 -19-11NOV99-1/1
